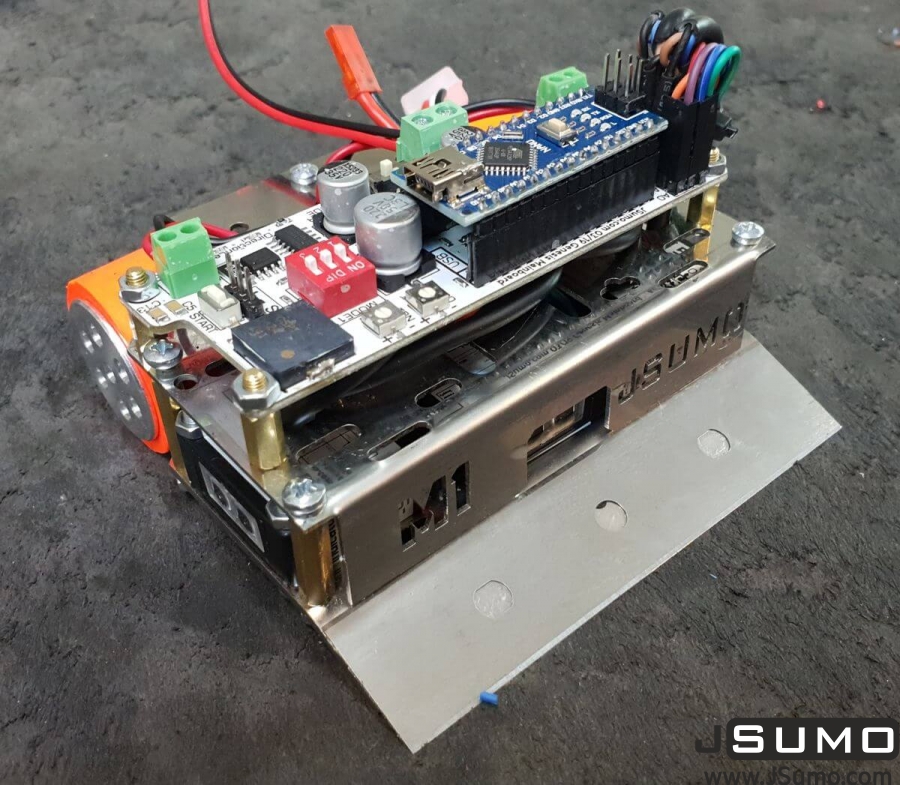

M1 Mini Sumo Robot Chassis (No Electronics - No Motors)

Good quality and functional design unite at M1 Mini Sumo Robot Chassis. The rigid structure provides more powerfull robot.

Bottom plate made from 2 mm stainless steel and bent at 20 degrees down for attaching blades. The upper plate is perfect for securing sensors and attaching robot controller boards.
Besides, upper plate has a gap at center for attaching LiPO batteries. You can place 3S or 2S 350, 400 or 500 mah batteries inside.

Supports lots of different robot boards like Arduino controllers with lots of holes and slots. All slots are cutted with 3,3 milimeter width. Very easy to attach your board with standart M3 size screws.

Suitable with all 12mm, 15mm,16mm dimater DC gearbox motors. Also suitable with Pololu or DFRobot 12mm motor brackets.

We designed that mini sumo robot body for for functionality and victory.

What is Included?

• M1 Mini Sumo Robot Chasis Plates x 2
• M3 20m Standoff x 5
• M3 8mm Standoff x 4
• Thin Razor Blade (Backside taped)
• 12mm Motor Bracket (Fits with Core Series or Pololu 12mm Motors)
• M2 15mm Screws x 4

What will you need more for that warrior mini sumo?

• Core 400 Rpm or Core 750 Rpm Dc Motors x 2 (Actually any 12mm, 15mm or 16mm diameter motor is ok, e.g Pololu, Fingertech brand motors...)
• SLT20 Wheel Set (Comes with aluminum rims)
• MR45 Sensors x 3 (These sensors have good range for mini sumo robot projects)
• QTR1A Edge Sensors (We use them at front bottom)
• Lipo Battery (Perfectly suits 3S 450-500 mah batteries)
• Genesis V.2 or XMotion V.2 Robot Controller Mainboard (Or your custom controller)
• Mini Katana Blade (Perfect fit   – Attach with double sided tape or screw)
