QTR-8RC Line Sensor (RC Time Digital)

Product Code: JS15184
Comments (0) | Add Comments
9.95 USD
Buy wholesale for more discount!
Quantity
Discount
10 - 19
%5
20 - 29
%6
30 - 39
%7
40 - 50
%8

 Quantity

Stock: In stock (19 Pieces)

Add to Favorites
Jsumo Robot parts shipment and price information
  • Features
  • Dimensions
  • Comments (0)
  • Payment Options
  • How Will We Ship To You?

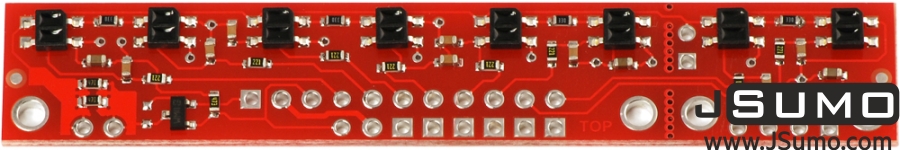

  • This sensor module has 8 IR LED/phototransistor pairs mounted on a 0.375" pitch, making it a great detector for a line-following robot. Pairs of LEDs are arranged in series to halve current consumption, and a MOSFET allows the LEDs to be turned off for additional sensing or power-savings options. Each sensor provides a separate digital I/O-measurable output.

    Functional Description
    The QTR-8RC reflectance sensor array is intended as a line sensor, but it can be used as a general-purpose proximity or reflectance sensor. The module is a convenient carrier for eight IR emitter and receiver (phototransistor) pairs evenly spaced at intervals of 0.375" (9.525 mm). To use a sensor, you must first charge the output node by applying a voltage to its OUT pin. You can then read the reflectance by withdrawing the externally supplied voltage and timing how long it takes the output voltage to decay due to the integrated phototransistor. Shorter decay time is an indication of greater reflection.

    This measurement approach has several advantages, especially when coupled with the ability of the QTR-8RC module to turn off LED power: No analog-to-digital converter (ADC) is required Improved sensitivity over voltage-divider analog output Parallel reading of multiple sensors is possible with most microcontrollers Parallel reading allows optimized use of LED power enable option

    The outputs are all independent, but the LEDs are arranged in pairs to halve current consumption. The LEDs are controlled by a MOSFET with a gate normally pulled high, allowing the LEDs to be turned off by setting the MOSFET gate to a low voltage. Turning the LEDs off might be advantageous for limiting power consumption when the sensors are not in use or for varying the effective brightness of the LEDs through PWM control.

    This sensor was designed to be used with the board parallel to the surface being sensed.

    We use them with Arduino Uno at PID line follower robot kit.
