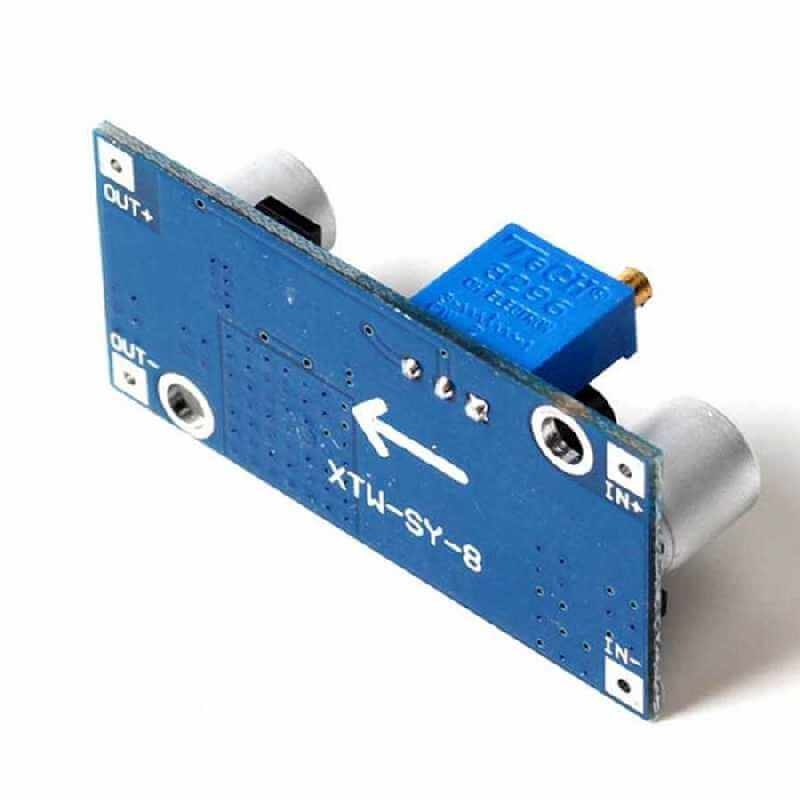

XL6009 Step Up Boost Regulator Board 1.25V - 35V Out

Product Code: JS15194
Comments (0) | Add Comments
3.85 USD

Quantity

Stock: In stock (6 Pieces)

Add to Favorites
Jsumo Robot parts shipment and price information
  • Features
  • Dimensions
  • Comments (0)
  • Payment Options
  • How Will We Ship To You?

  • Very useful regulator for higher voltage regulation than input voltage. We use that regulatos for high voltage, light weight required projects.

    Wide input voltage 5V ~ 32V;
    Wide Output Voltage 1.25V ~ 35V (with automatic buck , scope of work, any voltage inputs can be arbitrarily regulated voltage output )


    Built- 4A efficient MOSFET switches enable efficiency up to 94%;
    high switching frequency of 400KHz, the ripple is smaller and smaller.

    Application Ideas
    Line follower robots (For less weight usage,) , solar robot projects.

    Technical parameters:

    Module Properties：Non- isolated boost (BOOST)
    Rectification：Non- Synchronous Rectification
    Input Range：3.8V ~ 32V
    Output Range：1.25V ~ 35V
    Input Current：3A ( max ) , no-load 18mA (5V input , 8V output , no-load is less than 18mA. Higher the voltage , the greater the load current . )
    Conversion efficiency：< 94% ( greater the pressure , the lower the efficiency )
    Switching frequency：400KHz
    Output Ripple：50mV ( the higher the voltage , the greater the current , the greater the ripple )
    Load Regulation：± 0.5%
    Voltage Regulation：± 0.5%
    Operating Temperature：-40 ℃ ~ +85 ℃
    How to Use?
    Please tie your battery or voltage to IN pads. You will take voltage from OUT pads. You can adjust the voltage from blue trimpot.
