Keyestudio MEGA ProtoShield V3 with Mini Breadboard

Product Code: JS15580
Comments (0) | Add Comments
12.60 USD

Quantity

Stock: In stock (2 Pieces)

Add to Favorites
  • Features
  • Dimensions
  • Comments (0)
  • Payment Options
  • How Will We Ship To You?

  • Keyestudio MEGA Protoshield V3 with Mini Breadboard

    Product Overview

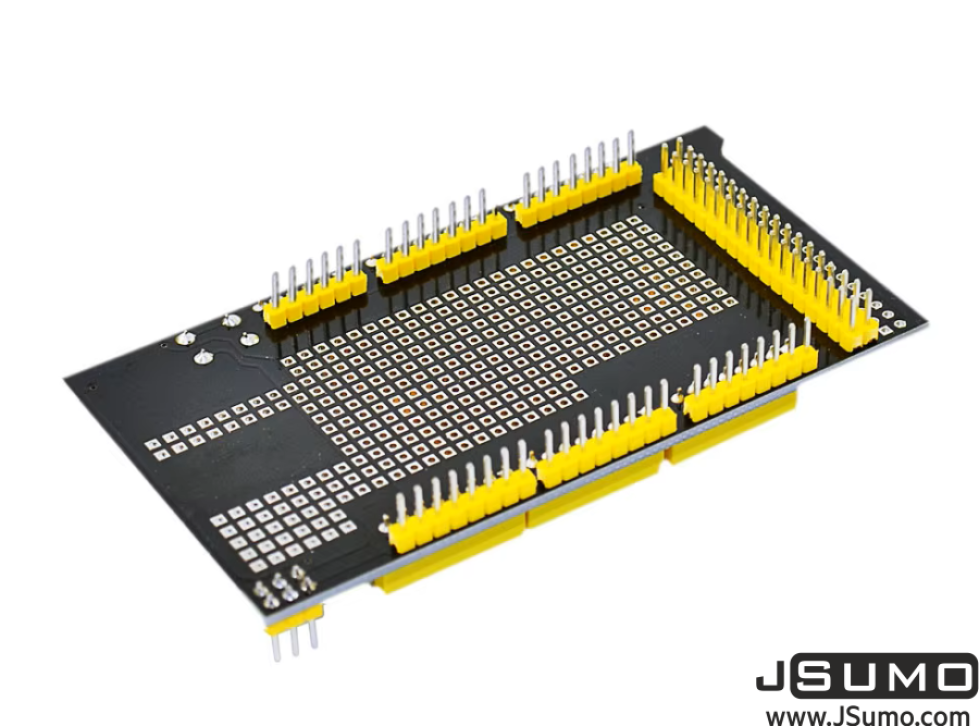

    The Keyestudio MEGA Protoshield V3 is a versatile prototyping expansion board designed specifically for the Arduino MEGA 2560. It provides a convenient platform for building and testing custom circuits, integrating seamlessly with the MEGA 2560 to facilitate rapid development and prototyping.

    Key Features

    • Compatibility: Designed to fit directly onto the Arduino MEGA 2560, ensuring a secure and stable connection.

    • Prototyping Area: Features a large prototyping area with both connected and unconnected through-holes, allowing for flexible circuit design.

    • SMD Support: Includes a dedicated area for soldering SMD components, accommodating chips up to 28 pins.

    • Power Distribution: Extends 5V, 3.3V, and VIN pins from the Arduino, providing easy access to power rails.

    • Reset and Indicators: Equipped with a reset button, power LED, and D13 indicator for enhanced usability.

    • ICSP Interface: Provides an ICSP interface for programming and debugging.

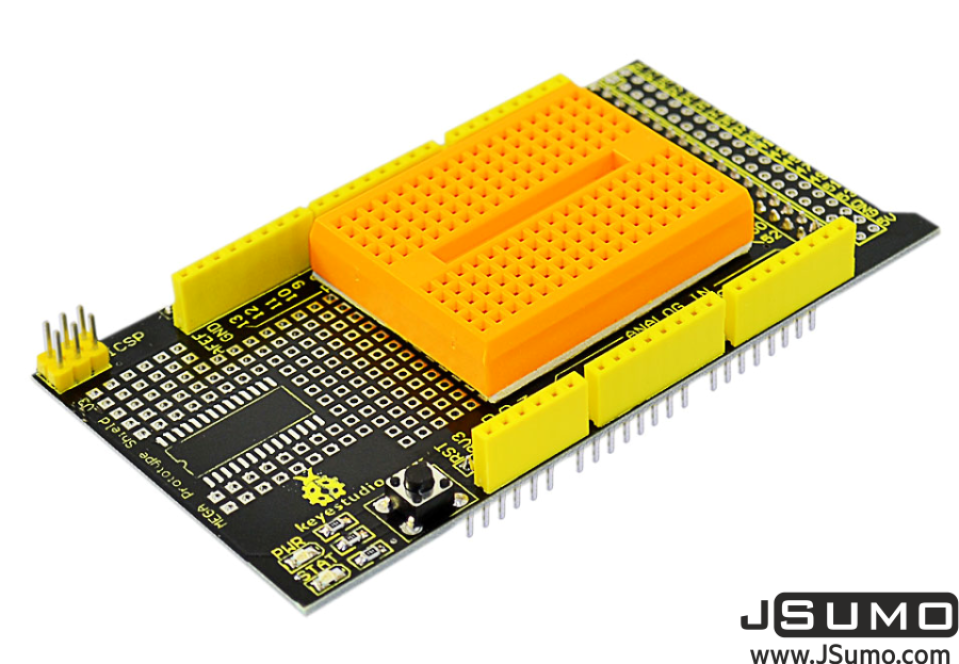

    • Mini Breadboard: Comes with a 170-point mini breadboard that can be attached to the prototyping area for solderless circuit testing.

    • Dimensions: 106mm x 56mm x 19mm

    • Weight: Approximately 27.2g

    Applications

    Ideal for:

    • Custom Circuit Design: Building and testing unique electronic circuits.

    • Educational Projects: Hands-on learning and experimentation with electronics.

    • Rapid Prototyping: Quick development and iteration of electronic projects.

    • Embedded Systems: Integration into embedded applications requiring a compact prototyping solution.

    Package Includes

    • 1 × Keyestudio MEGA Protoshield V3

    • 1 × 170-point Mini Breadboard
