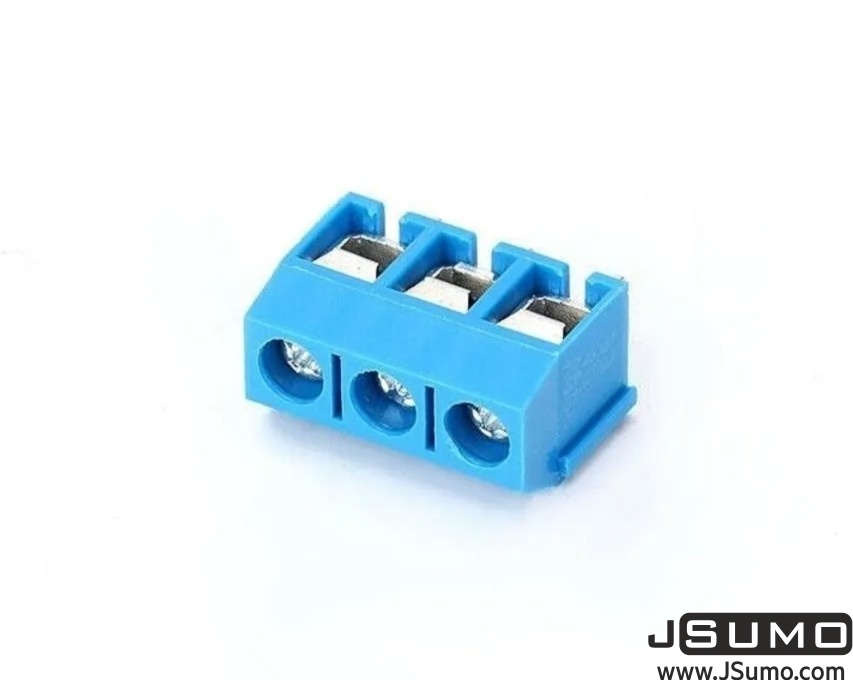

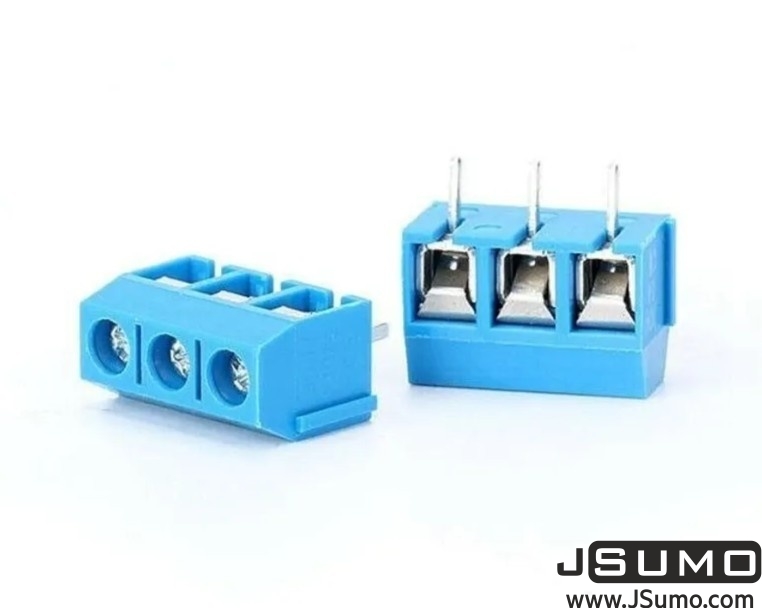

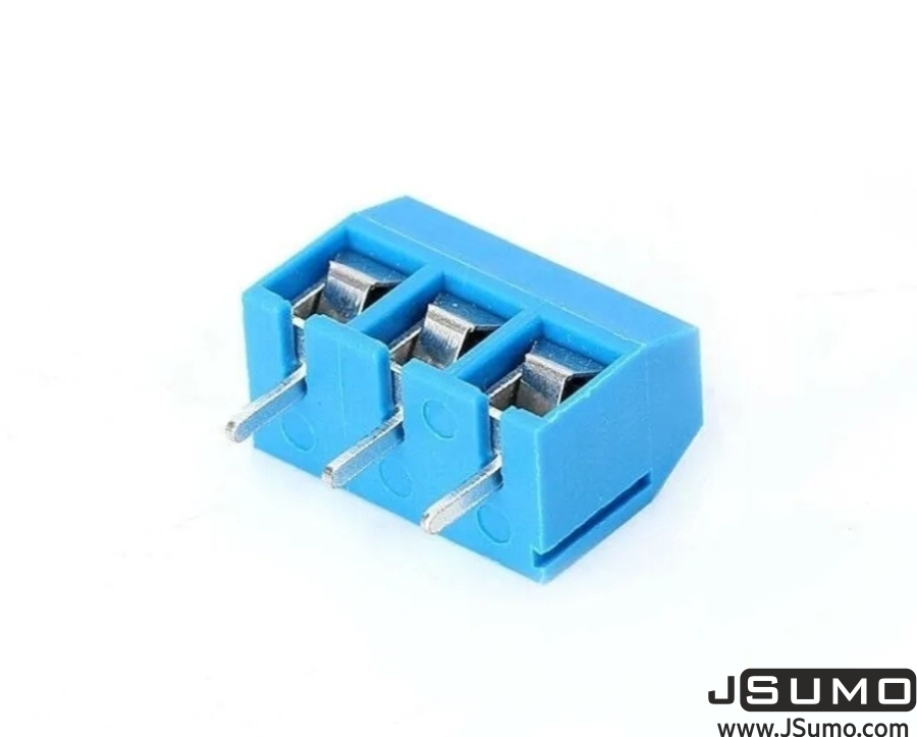

3 Pin Terminal Block KF301-P 5.08mm – Blue

3 Pin Terminal Block KF301-P 5.08mm – Blue

The KF301-P 3-pin terminal block is designed to provide secure and convenient wire connections on printed circuit boards (PCBs). With a 5.08mm pitch, it is compatible with a wide range of electronic projects, power supplies, and control boards. The screw-type connection ensures firm wire retention without loosening, while the zinc-plated steel screws offer durability and reliable performance even under high-current conditions.

Technical Specifications:

• Model: KF301-3P
• Number of Pins: 3
• Pitch: 5.08mm
• Connection Type: Screw terminal (PCB mount)
• Screw Material: M2.5 steel, zinc-plated
• Rated Voltage: 300V
• Rated Current: 16A
• Contact Resistance: ≤ 20mΩ
• Insulation Resistance: ≥ 5000MΩ / 1000V
• Withstand Voltage: AC1500V / 1 minute
• Wire Range: 22–14 AWG (max. 2.5mm²)
• Operating Temperature: –30°C to +120°C
• Color: Blue
• Package Includes: 1 × KF301-3P 5.08mm 3-Pin Terminal Block

Applications:

• Power and control circuits
• Sensor connections
• Arduino, Raspberry Pi, and other electronic projects
• Industrial automation systems
• Robotics and prototyping

Features & Benefits:

• Screw-locking design ensures stable and vibration-resistant connections.
• High current and voltage tolerance for reliable industrial use.
• Easy plug-and-unplug design for maintenance and replacement.
• Simple PCB mounting for versatile applications.
