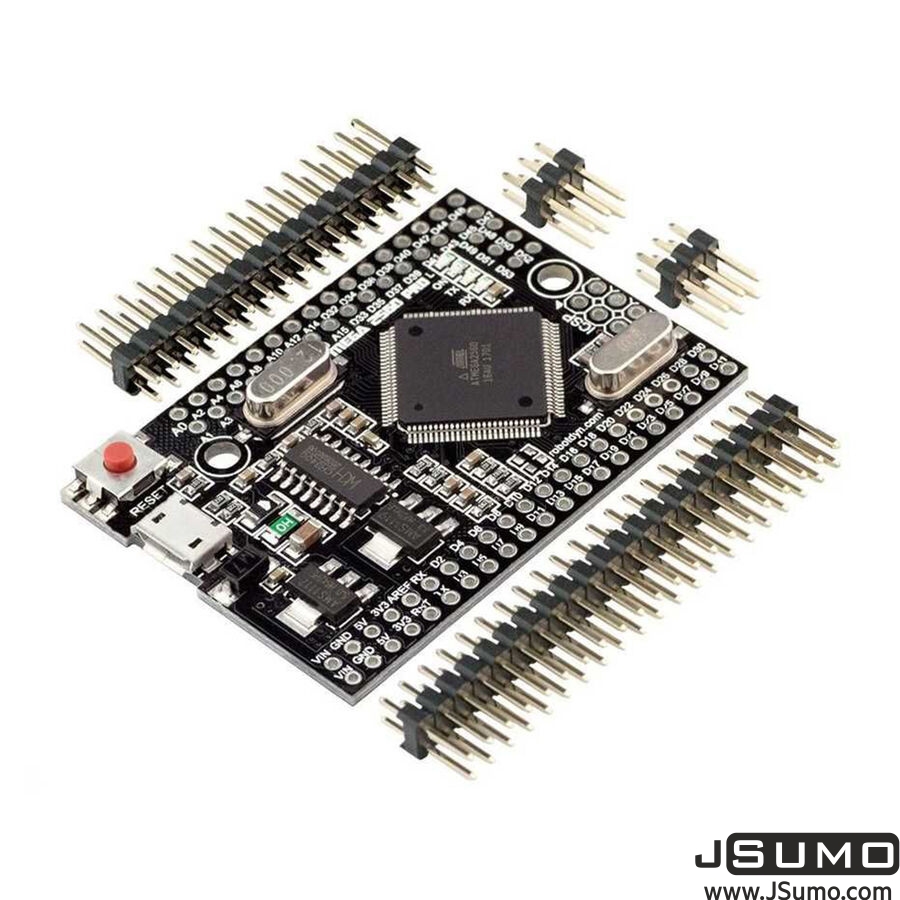

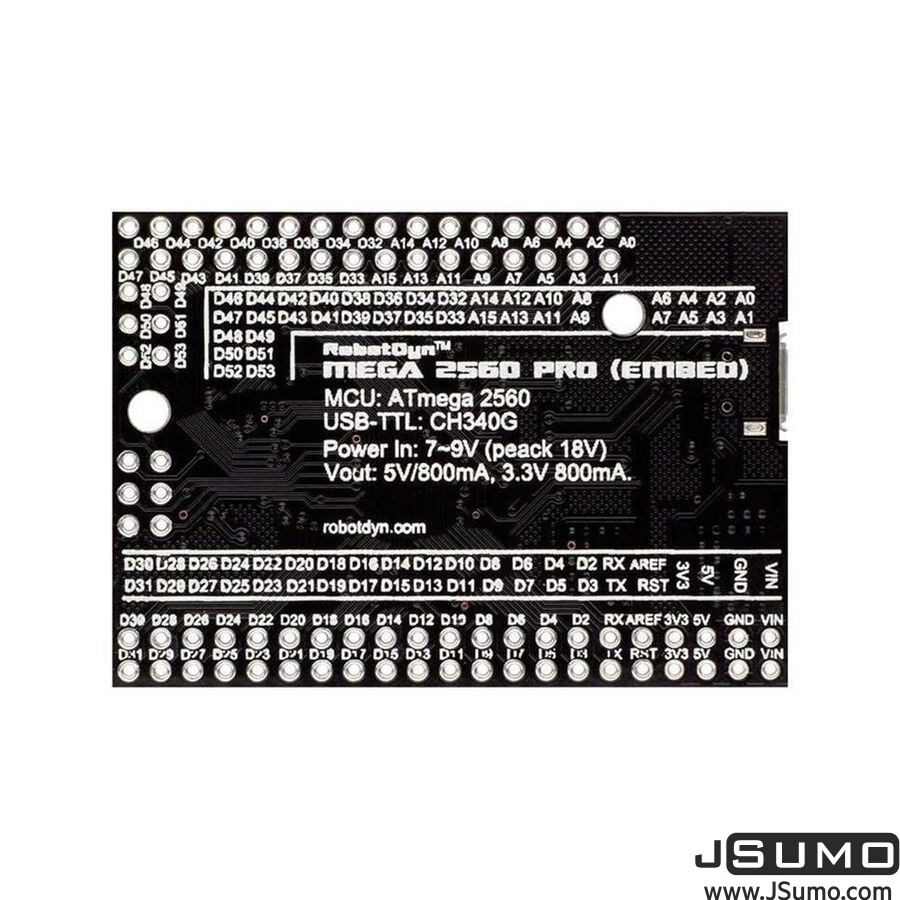

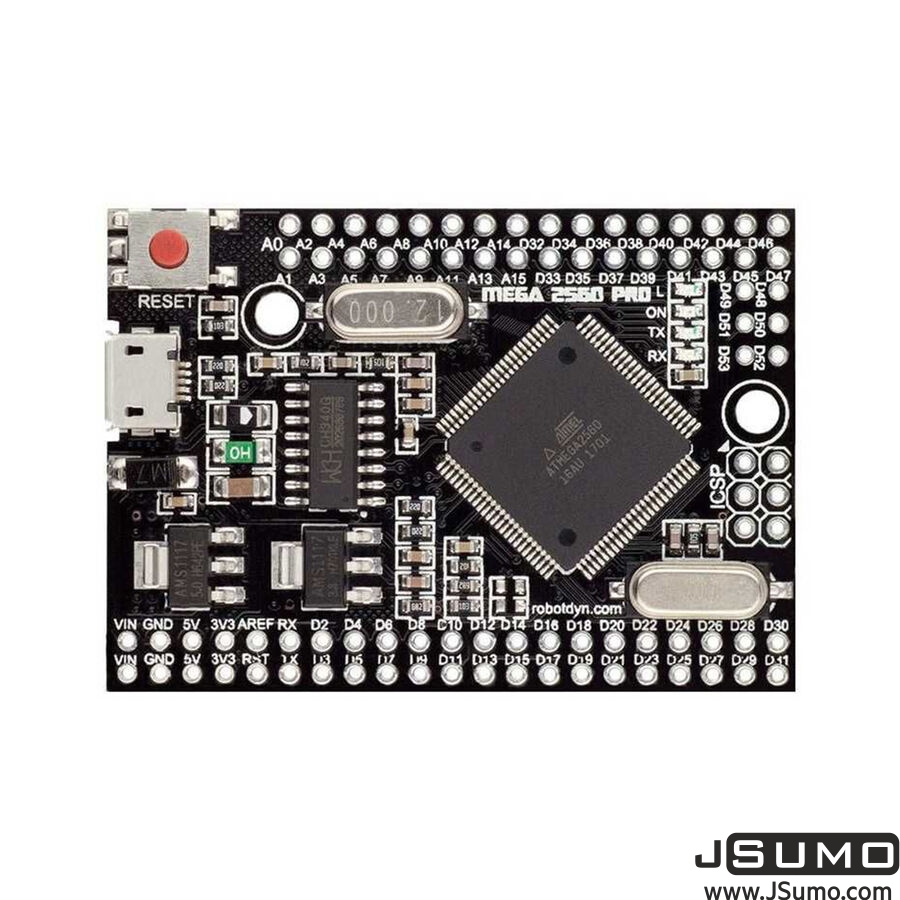

  • Arduino Mega2560 Pro Mini Development Board – ATmega2560 16U

    The MEGA2560 Pro Mini is a compact and powerful development board based on the ATmega2560 microcontroller. It offers the same performance and functionality as the standard Arduino Mega but in a much smaller form factor, making it ideal for space-constrained embedded projects and advanced DIY applications.

    Features

    • Based on the ATmega2560-16AU microcontroller running at 16 MHz

    • USB-to-serial interface using the CH340G chip (micro-USB connection)

    • 54 digital input/output pins, including PWM outputs

    • 16 analog input pins for sensor and signal connections

    • 256 KB flash memory (8 KB used by the bootloader)

    • Supports power input through Micro USB or VIN pin (recommended 6–9 V)

    • Onboard 5 V voltage regulator, with up to 800 mA output current

    • Compact design with a board size of approximately 38 × 52 mm

    • Compatible with the Arduino IDE and most Mega2560 libraries

    • Ideal for robotics, automation, and embedded control systems

    Technical Specifications

    Microcontroller ATmega2560-16AU
    Operating Voltage 5 V
    Input Voltage (VIN) 6 V – 9 V (max 18 V)
    Clock Speed 16 MHz
    Digital I/O Pins 54 (15 PWM outputs)
    Analog Input Pins 16
    Flash Memory 256 KB (8 KB used by bootloader)
    SRAM 8 KB
    EEPROM 4 KB
    USB Interface CH340G (Micro-USB)
    5 V Output Current Up to 800 mA
    Dimensions 38 mm × 52 mm
    Operating Temperature −40 °C to +85 °C

    Package Includes

    • 1 × Arduino MEGA2560 Pro Mini Board

    • 1 × Set of Pin Headers (may require soldering)
