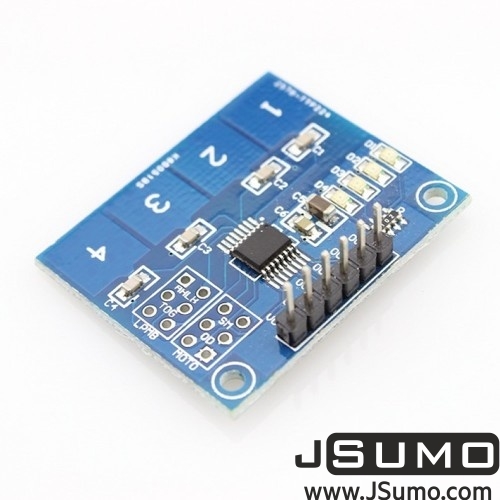

TTP224 4-Channel Capacitive Touch Sensor Module

Product Code: JS18768
Comments (0) | Add Comments
1.78 USD

Quantity

Stock: In stock (42 Pieces)

Add to Favorites
  • Features

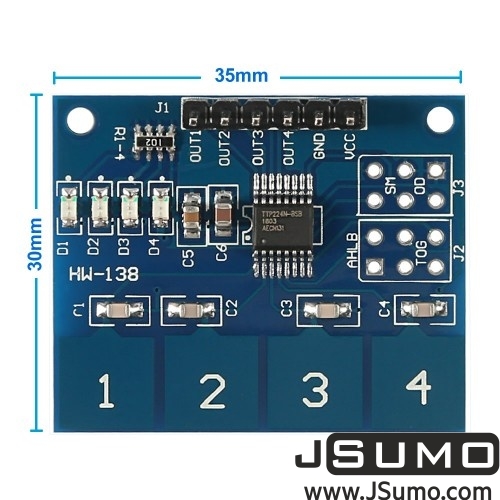

  • Dimensions
  • Comments (0)
  • Payment Options
  • How Will We Ship To You?

  • TTP224 4-Channel Capacitive Touch Sensor Module

    The TTP224 4-Channel Capacitive Touch Sensor Module is a compact and efficient solution for replacing traditional mechanical switches with capacitive touch inputs. Utilizing the TTP224 integrated circuit, this module provides four touch-sensitive pads that can be used to detect user input without physical contact.

    Features

    • Capacitive Touch Detection: Detects human touch through capacitive changes, eliminating the need for mechanical buttons.

    • Four Touch Channels: Equipped with four independent touch pads, each providing a digital output signal when activated.

    • Wide Operating Voltage: Supports a voltage range from 2.4V to 5.5V, making it compatible with various microcontrollers and systems.

    • Low Power Consumption: Designed for low power operation, suitable for battery-powered applications.

    • Simple Interface: Outputs digital high signals on corresponding pins when a touch is detected, easily interfaced with microcontrollers like Arduino.

    • Compact Design: Small form factor suitable for integration into various projects and devices.

    Applications

    • Home Automation Systems: Use as touch-sensitive switches for controlling lights, fans, and other appliances.

    • Consumer Electronics: Integrate into devices requiring touch input without mechanical buttons.

    • Security Systems: Employ in touch-sensitive alarm systems or entry controls.

    • Prototyping: Ideal for DIY electronics projects and rapid prototyping requiring touch interfaces.

    Technical Specifications

    Touch Channels 4
    Operating Voltage 2.4V – 5.5V
    Output Type Digital High
    Response Time ~100ms
    Power Consumption Low
    Interface Digital Output
    Dimensions Compact
