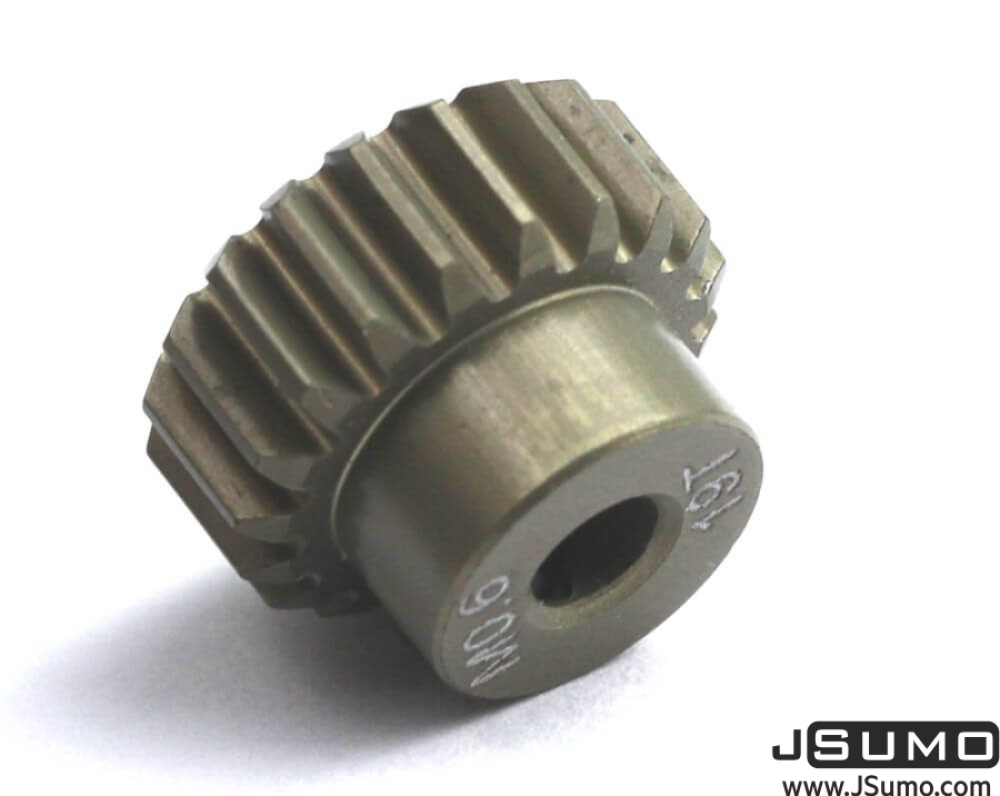

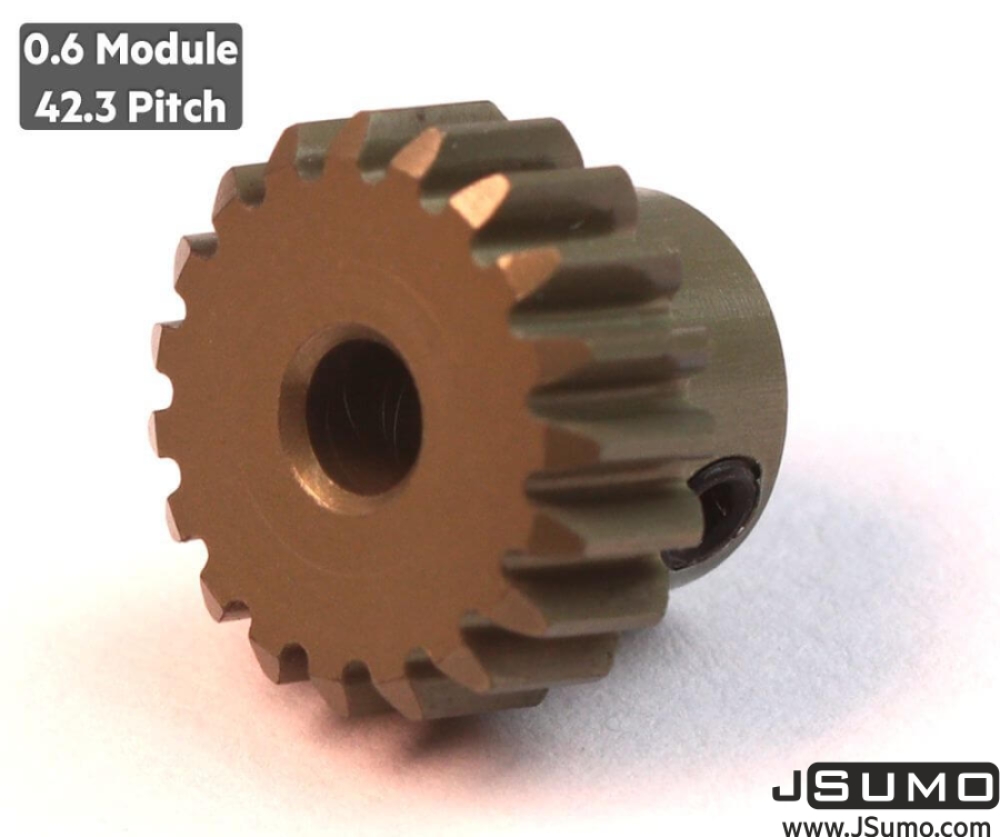

0.6 Module (42.3 Pitch) 19T Aluminum Pinion Gear - Ø3.17mm

Product Code: JS18893
Comments (0) | Add Comments
12.95 USD

Quantity

Stock: In stock (1 Pieces)

Add to Favorites
Jsumo Robot parts shipment and price information
  • Features
  • Dimensions
  • Comments (0)
  • Payment Options
  • How Will We Ship To You?

  • 0.6 Module (42.3 Pitch) 19T Aluminum Pinion Gear - Ø3.17mm

    The 0.6 Module (42.3 Pitch) 19T Aluminum Spur Gear with 3.17 mm Bore is a lightweight, precision-machined gear designed for robotics, automation and compact mechanical power transmission systems. Manufactured from high-quality aluminum, it combines excellent strength with low weight, helping reduce rotational inertia and improve system efficiency.

    Featuring a 19-tooth profile and a 0.6 Module (42.3 Pitch) standard, this spur gear meshes accurately with compatible gears to provide smooth operation, efficient torque transfer and precise motion control. The 3.17 mm (1/8") bore is compatible with many DC motors, brushless motors and precision shafts commonly used in robotic applications.

    Weighing only 1.8 grams, this gear is ideal for lightweight robotic mechanisms where reducing rotating mass improves acceleration, responsiveness and overall performance. Its precision CNC-machined tooth profile ensures reliable meshing and long service life.

    Technical Specifications:

    Product Type: Spur Gear

    Material: Aluminum

    Module: Aluminum: 0.6 Module (42.3 Pitch)

    Number of Teeth: 19T

    Overall Thickness: 9 mm

    Gear Thickness: 4.9 mm

    Outside Diameter: 12.6 mm

    Bore Diameter: 3.17 mm (1/8")

    Weight: 1.8 g

    Applications:

    • Robotics Projects
    • Mini Sumo Robots
    • Line Follower Robots
    • DC Motor Applications
    • Brushless Motor Systems
    • Gear Reduction Mechanisms
    • Custom Gearboxes
    • CNC Machinery
    • Industrial Automation
    • R&D and Prototype Development
    • Hobby & Maker Projects

    Important Note !

    This gear is designed for 0.6 Module (42.3 Pitch) gear systems and should only be used with compatible gears to ensure proper gear meshing and efficient power transmission. The 3.17 mm (1/8") bore fits standard motor shafts and precision shafts commonly used in robotics, automation and custom gearbox applications.

    Features
    Gear Type
    :
    Spur Gear
    Module
    :
    0.6 Module
    Hole Diameter
    :
    3.17 mm
    Material
    :
    Aluminum
