0,6 Module 64 Tooth (64T) Spur Gear (Ø5mm Hole)

0,6 Module 64 Tooth (64T) Spur Gear (Ø5mm Hole)

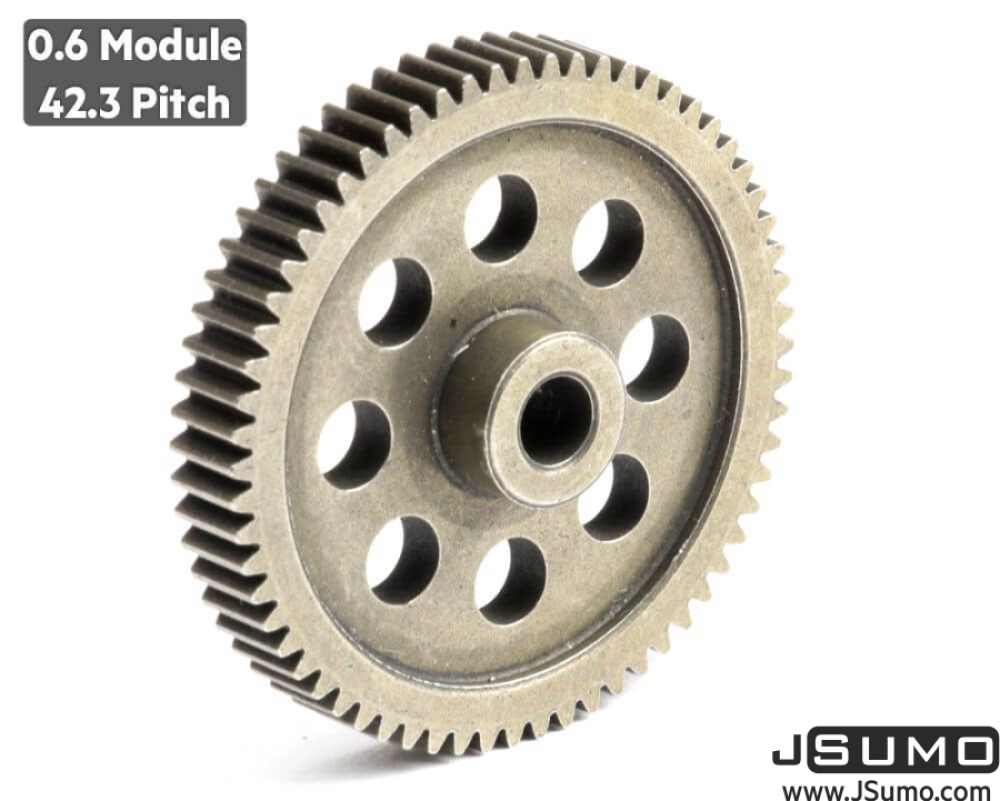

The 64T 0.6 Module Steel Spur Gear with a 5 mm Bore is a high-strength gear designed for reliable power transmission and high reduction ratios in robotics, gearboxes, automation systems, and mechanical drive applications. Manufactured from durable steel, this spur gear offers excellent wear resistance, mechanical strength, and long-term reliability under demanding operating conditions.

Featuring a 0.6 Module (42.3 Pitch) tooth profile and 64 teeth (64T), this gear is designed to work with compatible 0.6 Module pinion and spur gears. Its high tooth count provides a large reduction ratio when paired with a smaller pinion gear, making it particularly suitable for applications requiring increased torque and controlled output speed.

The 5 mm center bore allows easy installation on compatible 5 mm motor shafts and drive shafts. With a 6 mm gear face width, the gear provides a substantial tooth contact area for dependable torque transmission and improved load handling.

With its 39.75 mm outside diameter and robust steel construction, this gear is well suited for robot reduction systems, custom gearboxes, DC motor applications, industrial automation, CNC mechanisms, and other mechanical power transmission systems.

Technical Specifications:

Product Type: Spur Gear

Material: Steel

Module: 0.6 Module (42.3 Pitch)

Number of Teeth: 64T

Overall Thickness: 9.2 mm

Gear Face Width: 6 mm

Outside Diameter: 39.75 mm

Center Bore Diameter: 5 mm

Weight: 28.3 g

Applications:

• Mini Sumo Robots
• Mega Sumo Robots
• Combat Robots
• Robot Reduction Systems
• DC Motor Applications
• Custom Gearboxes
• Industrial Automation
• Mechanical Power Transmission Systems
• CNC Machines
• R&D and Engineering Projects

Advantages:

• High Reduction Ratio: The 64-tooth design allows significant speed reduction and increased output torque when paired with a suitable pinion gear.
• Durable Steel Construction: Provides excellent resistance to wear, impact, and mechanical loads.
• Reliable Torque Transfer: The 6 mm gear face width provides a substantial contact area for efficient power transmission.
• Easy Integration: The 5 mm center bore is compatible with standard 5 mm shafts.
• Precision Performance: The 0.6 Module tooth profile provides smooth and consistent engagement with compatible gears.

The 64T 0.6 Module Steel Spur Gear (5 mm Bore) is an ideal choice for robotics, high-torque reduction systems, custom gearboxes, and industrial mechanical applications requiring durability, precise motion transmission, and high reduction capability.
