CC6921B 100A Current Sensor (100A Absolute 13.2mv/A, 3.3V Working Voltage)

Product Code: CC6921B33V
Comments (0) | Add Comments
11.95 USD

Quantity

Stock: In stock (94 Pieces)

Add to Favorites
  • Features
  • Dimensions
  • Comments (0)
  • Payment Options
  • How Will We Ship To You?

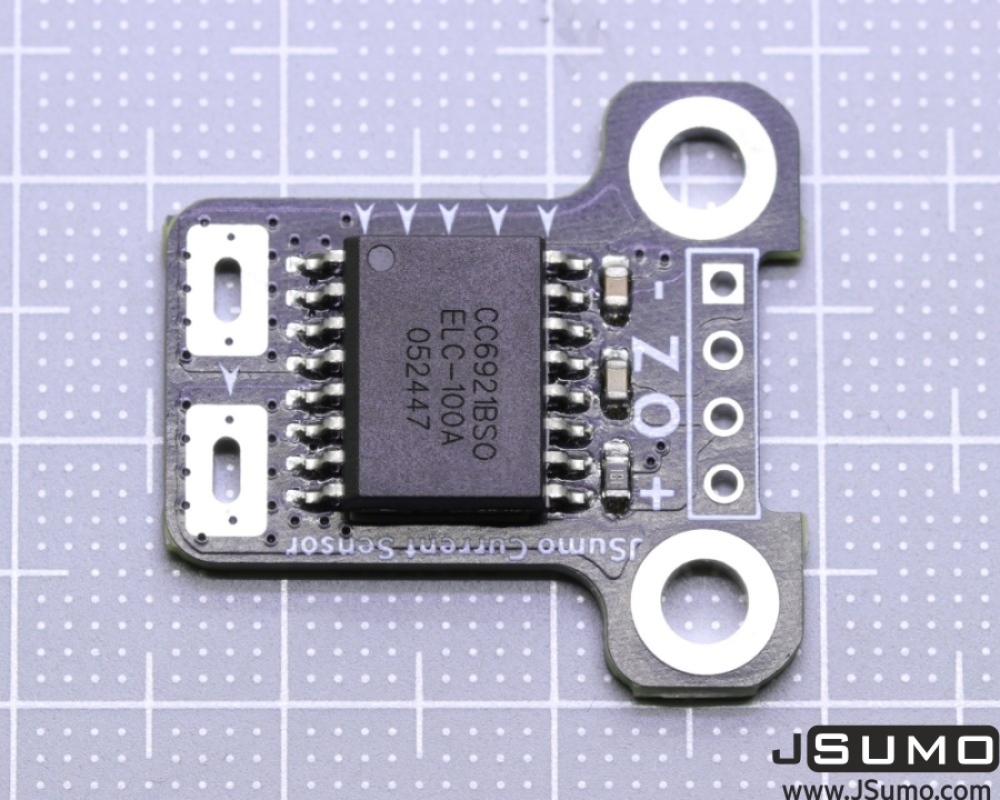

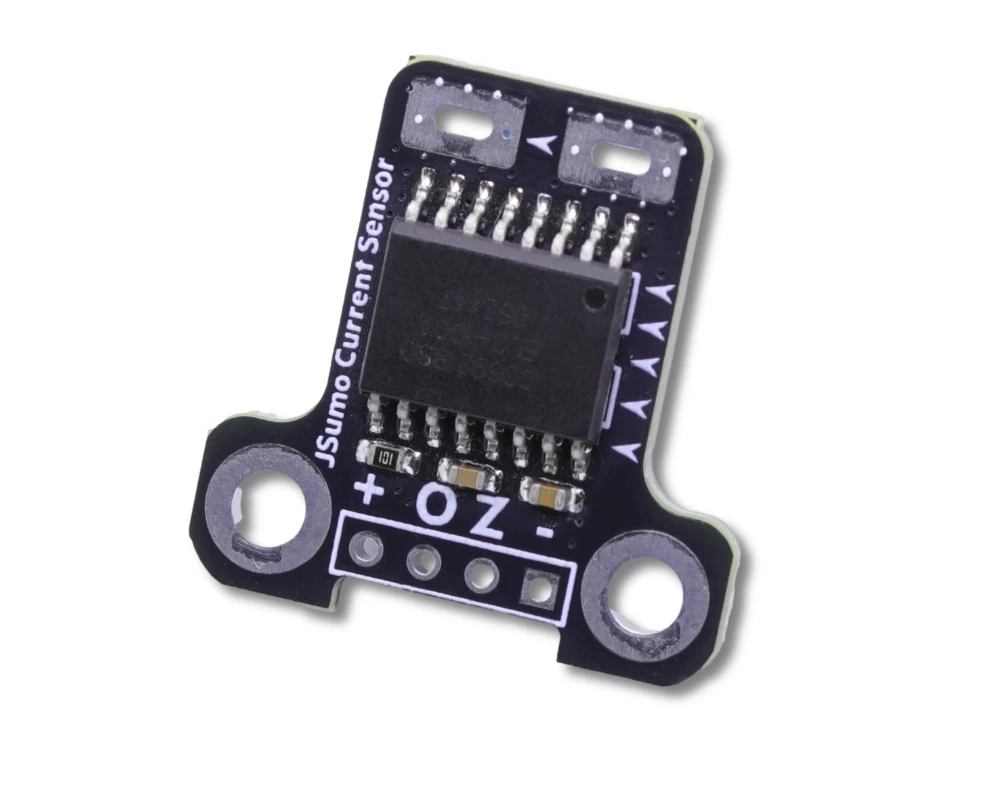

  • This current sensor module is a compact Hall-effect type sensor capable of measuring bidirectional current up to ±100 Amperes (+100A positive slope, -100A negative slope).

    When current flows in the direction indicated by the arrow on the board, the O (output) pin provides an analog voltage equal to the zero reference voltage (1.65V) plus 13.2 mV per Ampere.

    Technical Specifications:

    • Operating voltage: 3.3V (Not tolerant to 5V)
    • Measurement range: ±100A
    • Output type: Analog voltage (13.2 mV/A)
    • Zero-current output voltage: 1.65V
    • Bandwidth: 250kHz
    • Board dimensions: 23.6 mm × 27 mm × 4 mm
    • Mounting holes: Ø 3.2mm x 2 (Suitable for M3 screw size)

    For the datasheet of current sensor IC, please click here.

    Current Sensor Applications:

    • Motor control applications (which need also regen. current sensing at all situations)
    • Robotics projects
    • Projects requiring high-current measurement or sampling

    Sensor can be used with many projects such as Arduino, ESP32, STM applications with 3.3V working voltage.

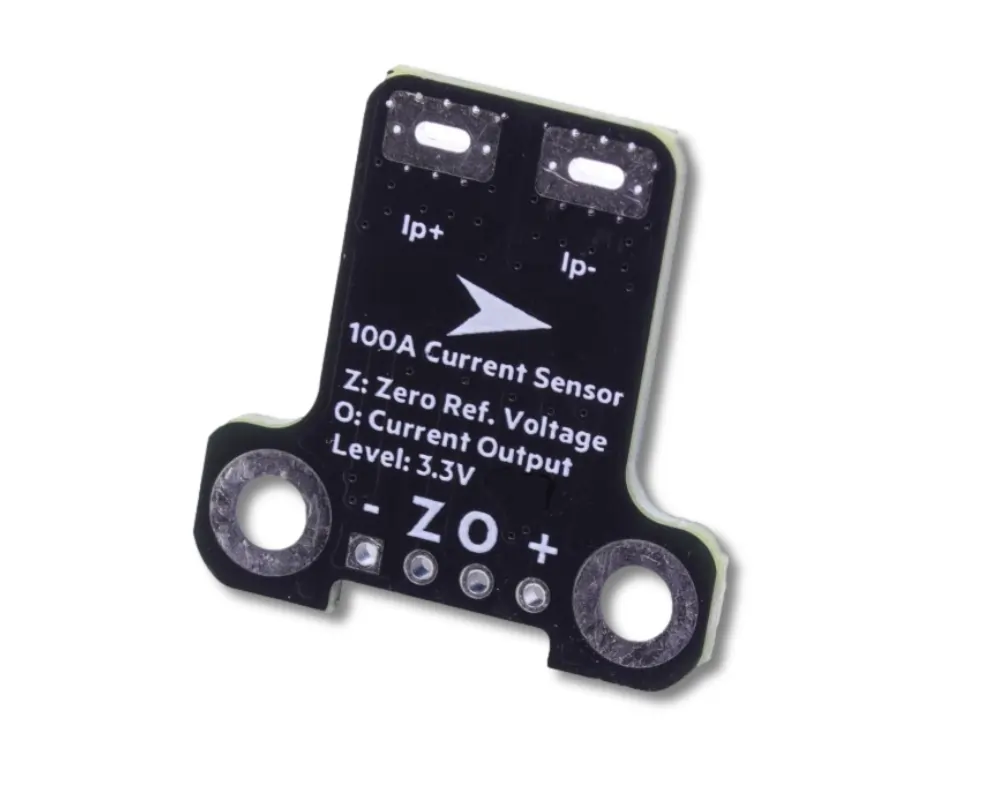

    Pin Definitions

    +: 3.3V Positive voltage.

    O: Analog output pin, this pin sends 1.65V at no current.

    Z: Analog refence voltage of output that current senor IC. (Approximately 1.65V) Used for reference voltage at calculation. For better accuracy using this recommended.

    -: GND pin of the module.
