Arduino Mega 2560 R3 Clone + USB Cable Gift

If you are looking for more digital inputs, outputs and analog inputs, the Arduino Mega 2560 will meet your needs.

Arduino is an open source physical interaction platform with a simple I/O board running in the Processing/Wiring language development environment. It can be used to develop stand-alone interactive objects or in conjunction with software on your computer. (For example Flash, Rendering, MaxMSP). The open source IDE can be downloaded for free. (Mac OS X, Windows and Linux operating systems are supported for now)

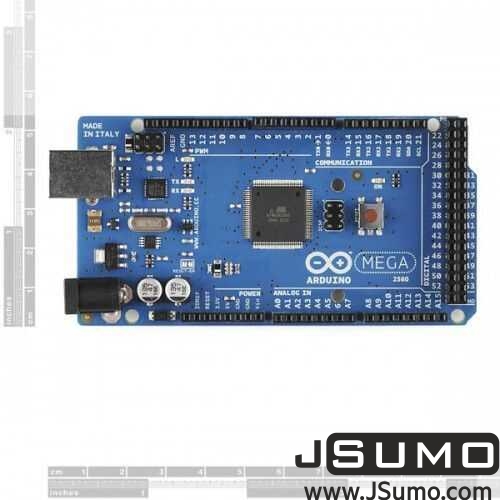

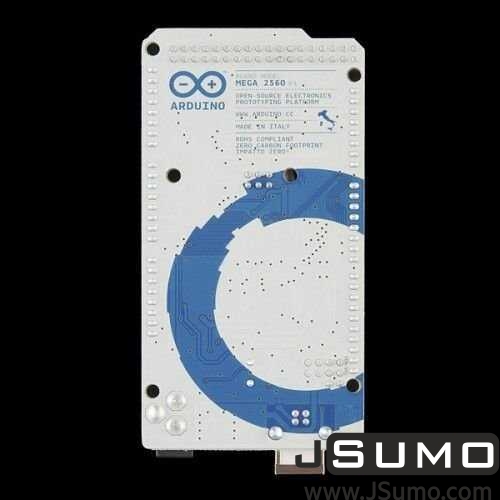

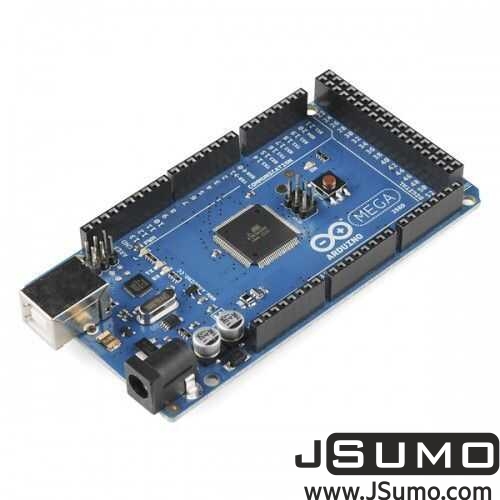

Arduino Mega is a board with Atmega2560 microprocessor. It has 54 digital input/output pins (14 of which can be used as PWM outputs), 16 analog outputs, 4 UART (hardware serial ports), 16 MHz crystal oscillator, USB connector, voltage input connector, ICSP connector and reset button.

It has all the circuit elements needed to run the microcontroller. Simply connect it to a computer with a USB cable or supply input voltage with an AC-DC converter or a battery. Mega is compatible with most Shields designed for other Arduinos.

In addition to all these features, Mega 2560 R3 has SDA and SCL pins as well as AREF pins. There are also two new pins next to the RESET pin. The first of these is the Arduino Shield, thanks to the IOREF pin and the voltage provided by the board. runs them. The other pin is not connected anywhere and is left blank for future applications. Thanks to this empty pin, it can work in harmony with the Shields that will be removed in the future.

Features:
ATmega2560 microcontroller
Operating voltage 5V
Supply voltage ? 7-12V
Supply voltage ? 6-20V (limit values)
54 Digital I/O Pins (14 PWM outputs)
40 mA current for I/O pins
50 mA current for 3.3 V pin
16 Analog Inputs
256kB Flash Memory (8kB for bootloader)
8kB SRAM
4kB EEPROM
16MHz Clock Speed
