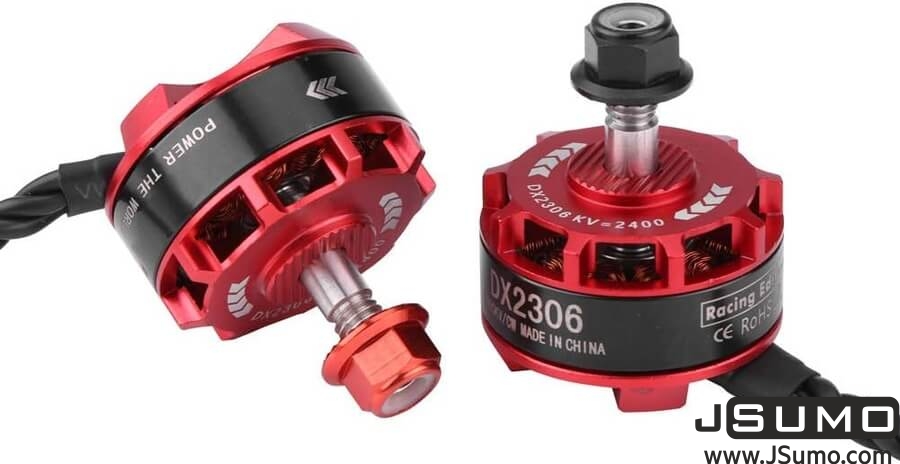

DX2306 2300KV Outrunner Brushless Motor CCW

Product Code: JS16416
Comments (0) | Add Comments
28.58 USD

Quantity

Stock: In stock (41 Pieces)

Add to Favorites
  • Features
  • Dimensions
  • Comments (0)
  • Payment Options
  • How Will We Ship To You?
  • DX2306 2300KV Brushless Drone Motor – CCW

    Upgrade your racing drone with this high-performance brushless motor designed specifically for FPV applications (X210, X220, X250 frames and similar).

    Key Features:

    Application: Designed for brushless RC drones in FPV racing configurations.

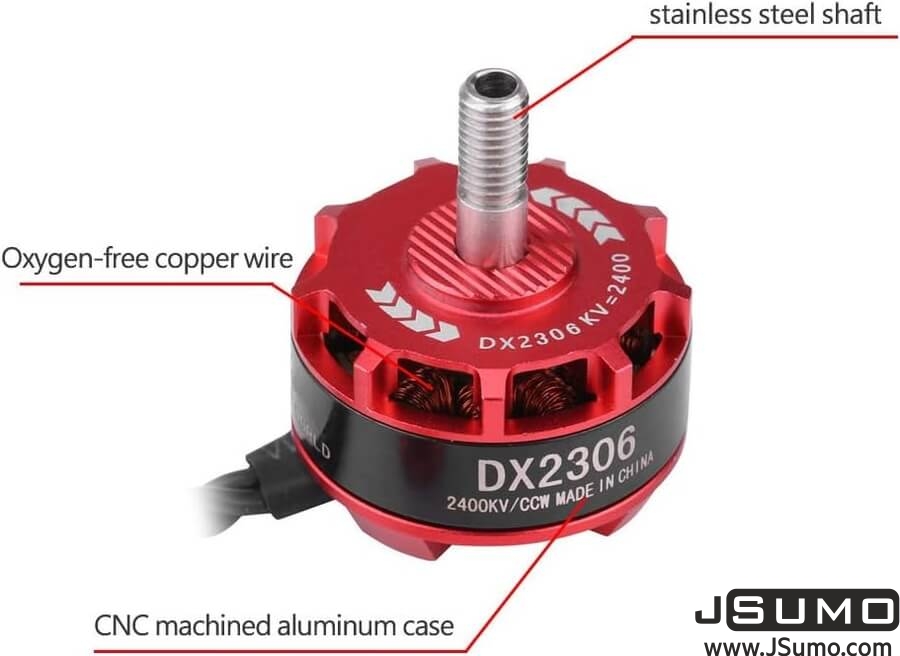

    Durable Construction: Hardened stainless-steel shaft withstands heavy loads and repeated use.

    Efficient Heat Dissipation: CNC-machined aluminium body improves heat transfer and resists corrosion.

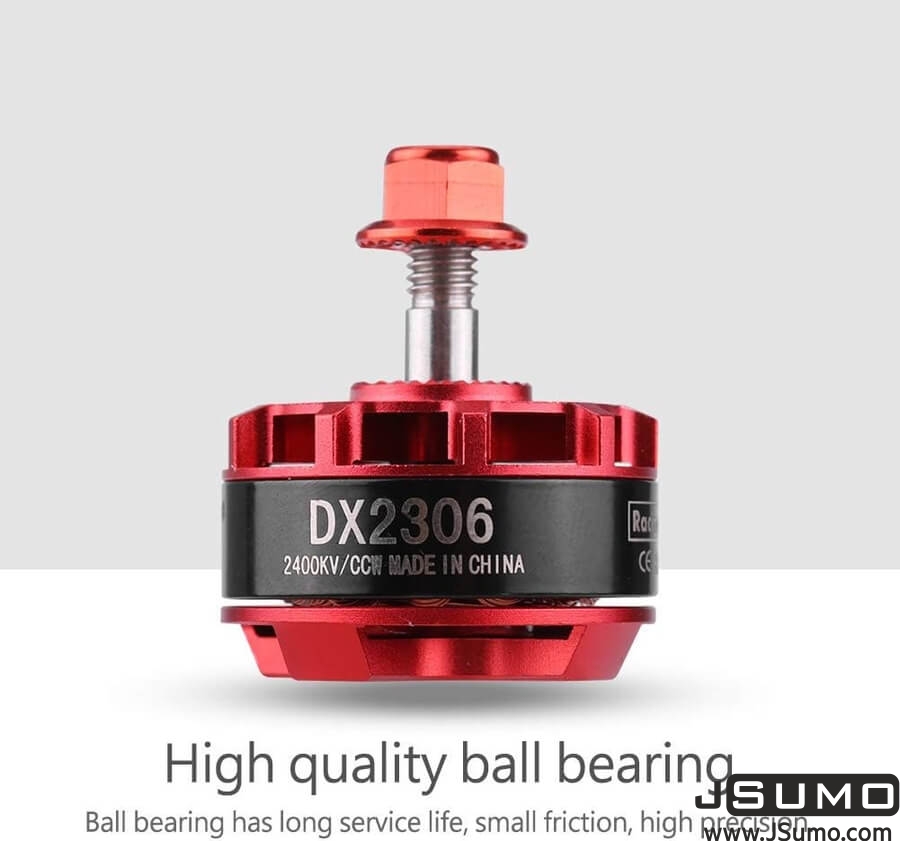

    Long Service Life: Oxygen-free copper windings for high conductivity and low resistance. Precision bearings for reduced friction and high accuracy.

    Warranty: Backed by a 180-day guarantee—contact us if you encounter any issues and we’ll assist you.

    Technical Specifications:

    Material: Metal + Magnet

    Colour: As shown in product images

    Model: DX2306

    KV Rating: 2300 KV

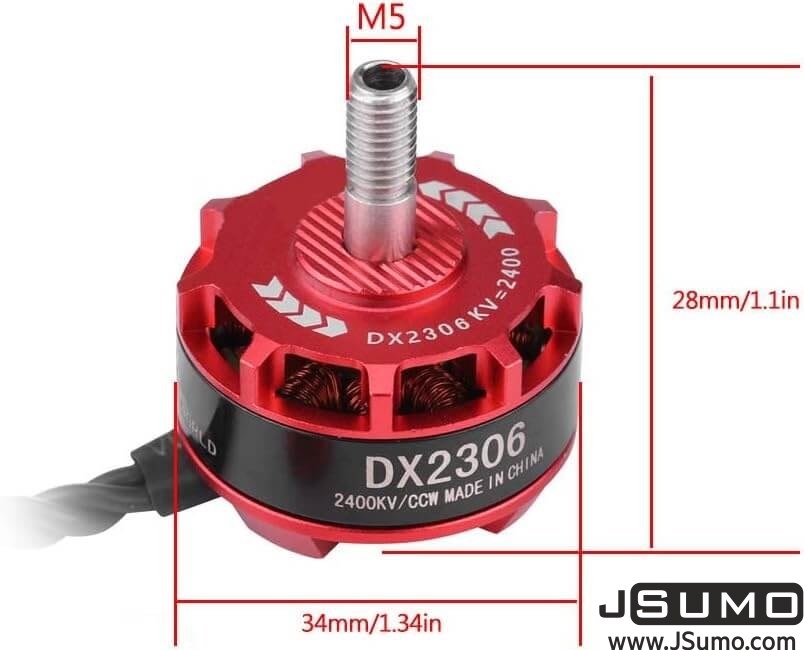

    Dimensions: Approx. 34 mm height × 28 mm width

    Shaft Diameter: M5

    Mounting Hole Size: M3

    Weight: 33 g (per motor)

    Voltage: 2–4S LiPo battery (not included)

    Compatible Battery: 2–4S LiPo

    Typical Operating Conditions: 14.8 V, propeller size 5045

    Current Draw: 33 A

    Thrust: 980 g

    Power Output: 458 W

    Efficiency: 2.1 g/W
