MiNaCo V1 Arduino Nano Controller Board (With Nano)

Product Code: 1796
Comments (0) | Add Comments
24.00 USD

Quantity

Stock: In stock (14 Pieces)

Add to Favorites
Jsumo Robot parts shipment and price information
  • Features
  • Dimensions
  • Comments (0)
  • Payment Options
  • How Will We Ship To You?

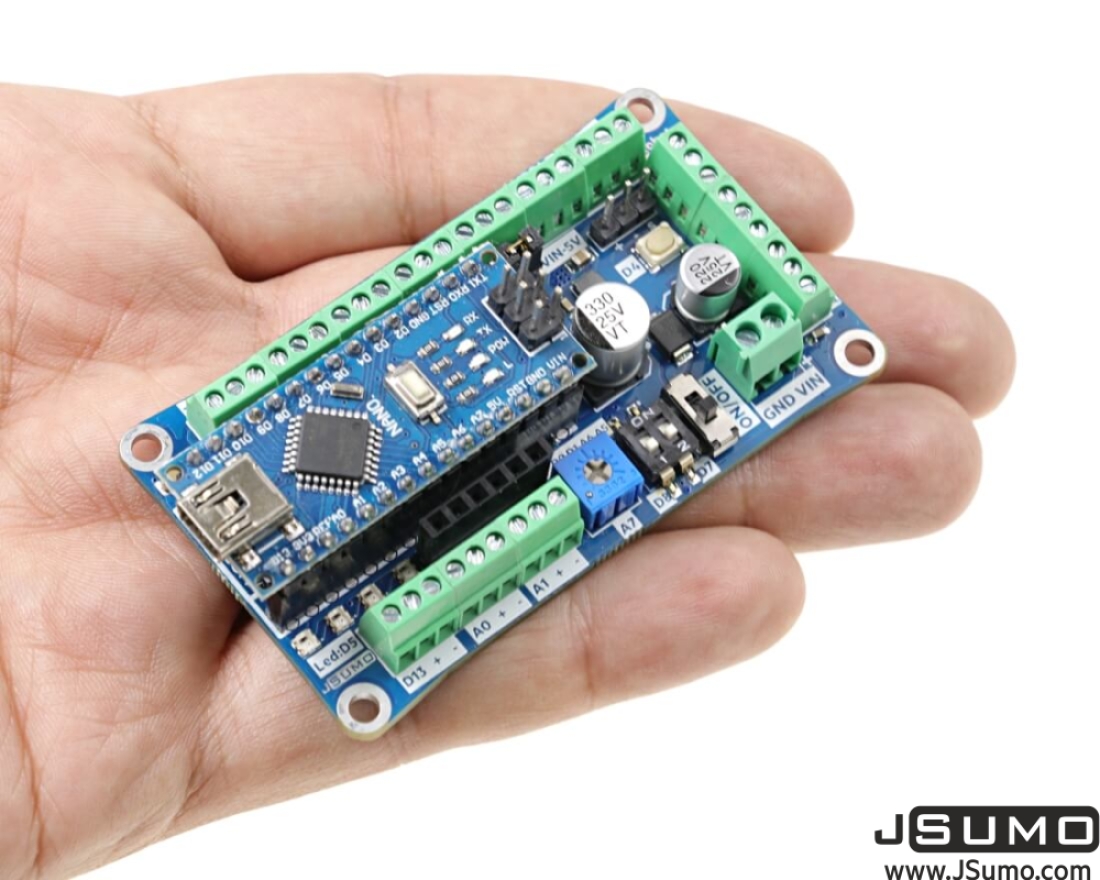

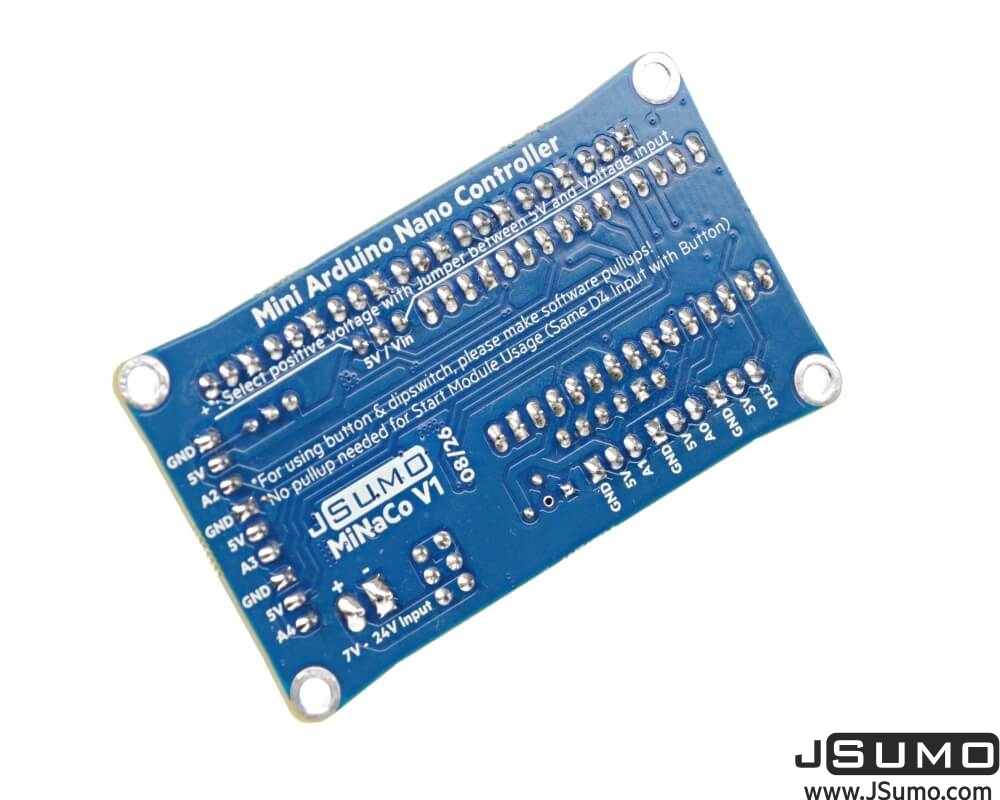

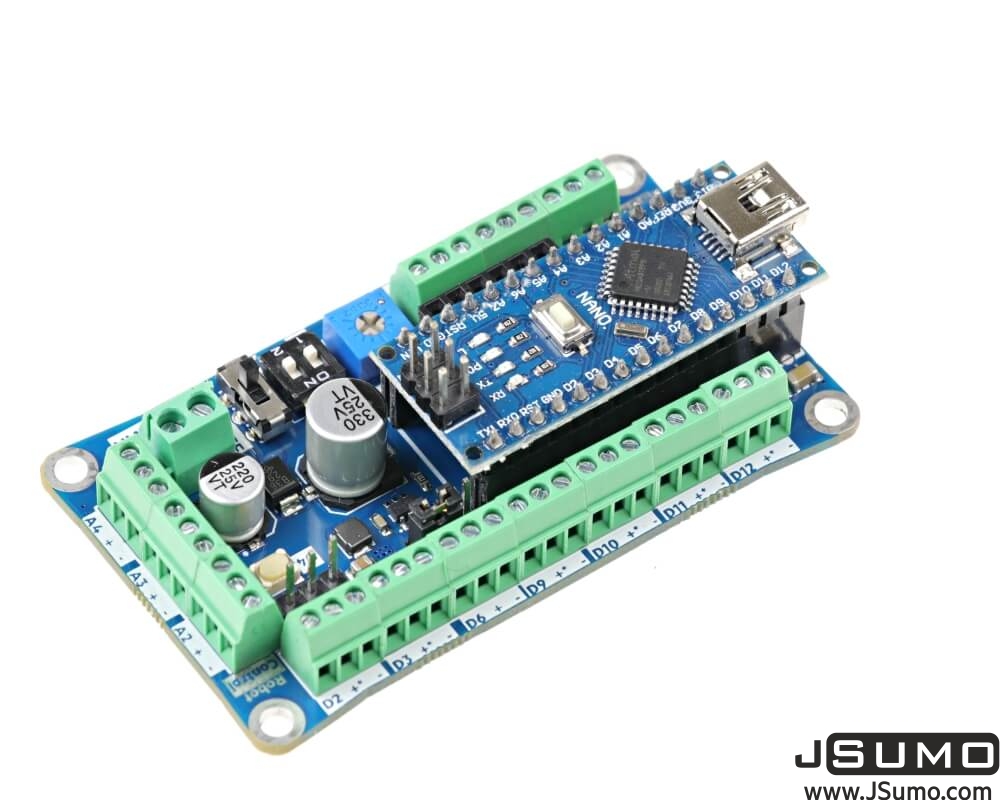

  • This is a mini robot controller board developed for Sumo robots and similar robotic projects.

    Mini Controller Features

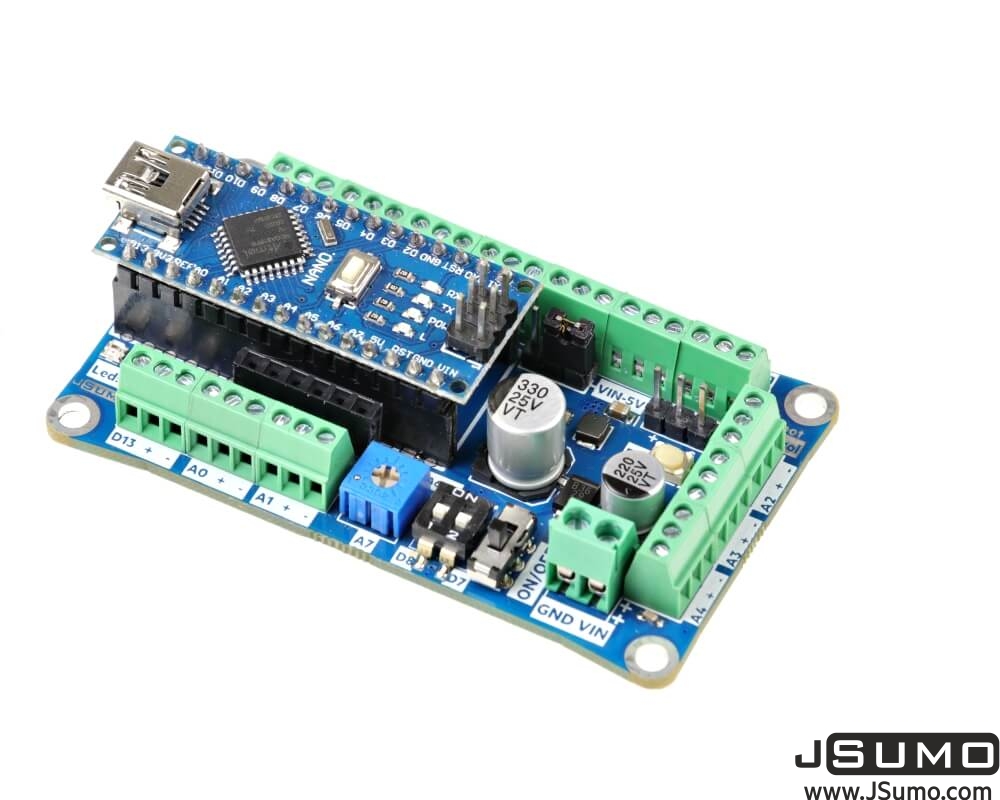

    • 7V to 24V Input with efficient switching mode power regulator (with built-in shortcircuit protection)
    • Up to 500mA terminal power regulation output.
    • Dimensions: 72.4 mm × 42.3 mm × 18.9 mm, weight: 33 g

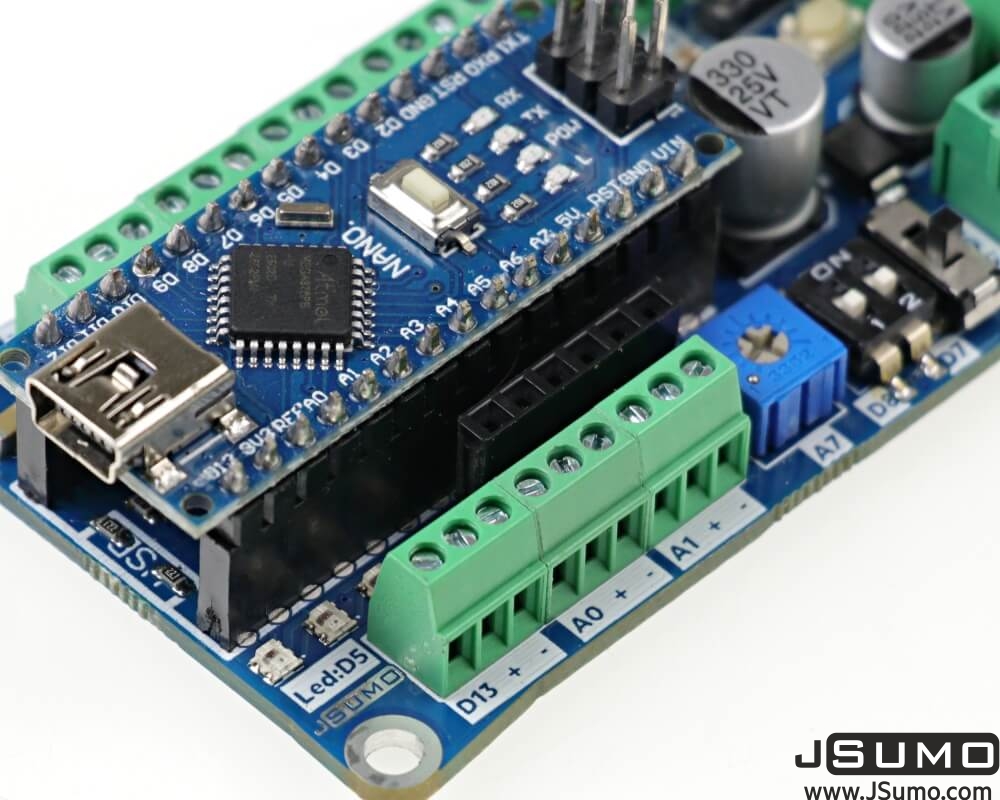

    • 1 x Trimpot connected to A7 Pin.
    • 1 x Start Button & Input (For Start Modules) connected to D4 Pin.
    • 4 x addressable (in series) leds connected to D5 Pin.
    • 2 x Dipswitch: Connected to D7 - D8 Pins (Can be used for sumo robot startting mode & tactical selection)
    • 1 x Vin-5V Selection Jumpers: Used for terminal voltage selection Input voltage or regulated 5V.

    Free Pins in Green Terminals

    MiNaCo board has total 17 free pins you can use for any purpose. (Arduino Nano have total 22 I/O, 5 pin is used inside controller)

    Example Pin connection Scenario for Sumo Robot

    • 5 Opponent Sensors (Digital I/O): Connected to D2, D6, D10, D9, D13.
    • 2 Front Edge (White Line) sensors Connected to A0 to A1.
    • 2 Back Line Sensors connected to A3, A4
    • 4 Motor Control Pins: 2 PWM Pins, 2 direction pins. (D3, D10, D11, D12)
    • MicroStart Robot Start Module connected to D4
    • Bluetooth Module (HC06) can be connected to female terminal with D0 and D1.

    By the way, with MiNaCo you can use, tactical dipswitch, user leds and trimpot (such as setting attack speed at Dohyo).

    How will you program your MiNaCo?

    Easy! Just use mini USB cable that we are sending with robot controller. You can directly program your Arduino Nano while it is on the board.
