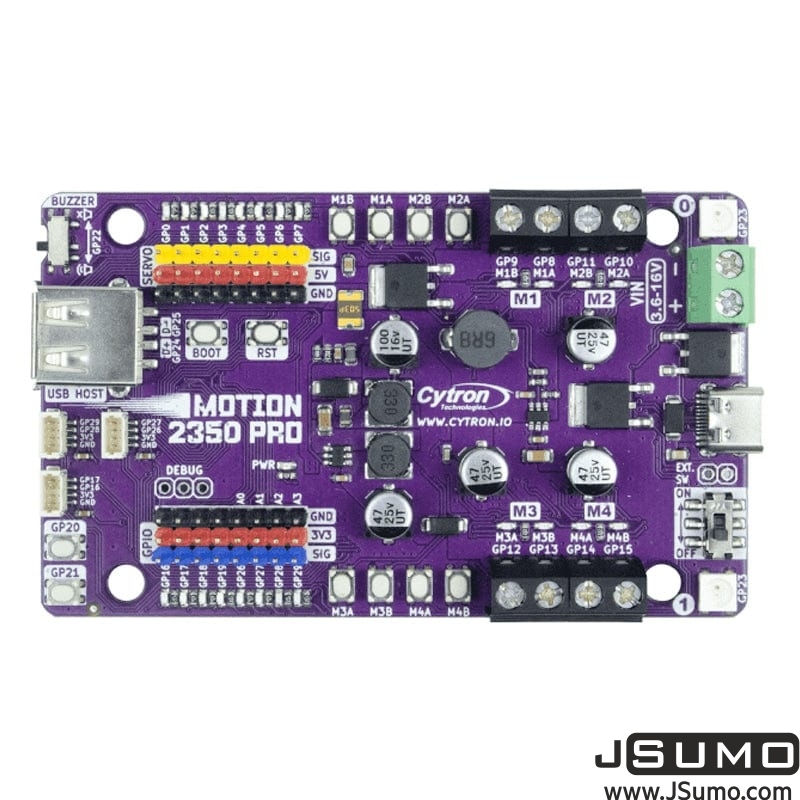

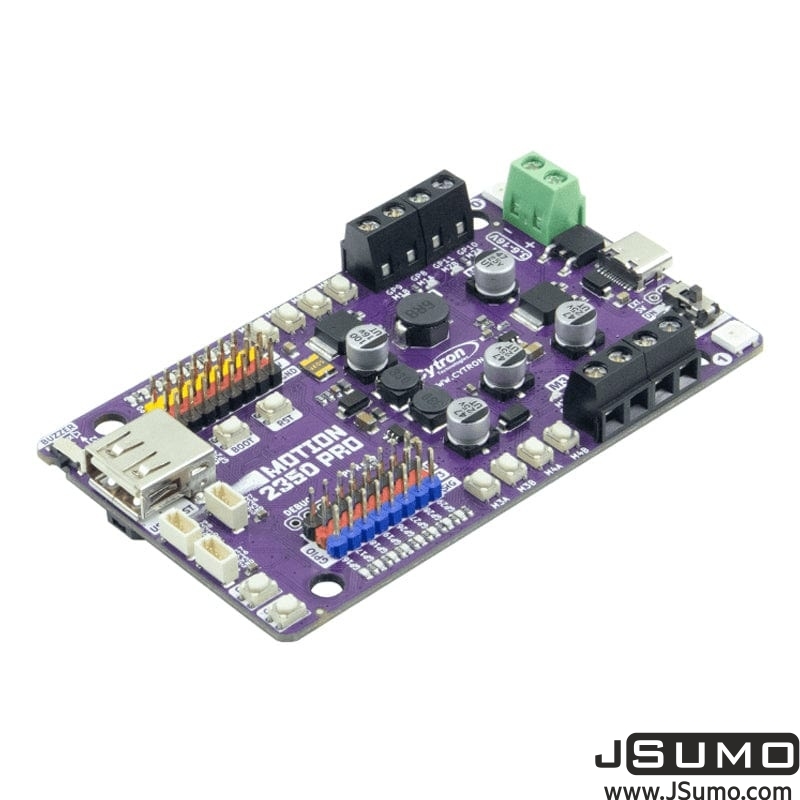

  • Motion 2350 Pro Control Board

    The Motion 2350 Pro is an advanced robotics control board designed for everyone from beginner to intermediate robotics developers. Powered by Raspberry Pi's latest RP2350 microcontroller, it delivers high performance, flexible connectivity, and an easy-to-use programming environment, allowing you to bring robotics projects to life quickly and efficiently.

    Equipped with 4 DC motor drivers, 8 servo outputs, 8 GPIO pins, USB Host support, dedicated motor test buttons, status LEDs, and many other integrated features, the Motion 2350 Pro provides a complete control platform for mobile robots, robotic arms, and multi-axis automation systems.

    The board comes preloaded with CircuitPython, making it ready to use straight out of the box. It also supports MicroPython, C/C++, and will soon include Arduino compatibility, giving developers the flexibility to program using their preferred language. With minimal external electronics required, the Motion 2350 Pro is an ideal solution for building sophisticated robotic systems.

    Features

    Powerful Hardware Platform

    • Dual-core Arm Cortex-M33 processor
    • 150 MHz operating frequency
    • 520 KB on-chip SRAM
    • 2 MB Flash memory

    Advanced Motor & Servo Control

    • 4 DC motor drivers (3A continuous, 5A peak current per channel)
    • Dedicated motor test button for each motor channel
    • 8 servo motor outputs

    Expandable I/O & Connectivity

    • 8 × 3.3V GPIO breakout pins
    • 3 Maker Ports
    • USB Host support for joysticks and USB accessories
    • USB Type-C for programming and power
    • VIN input: 3.6V – 16V

    User-Friendly Interface

    • 24 status LEDs
    • 12 onboard buttons (motor test, user buttons, boot, and reset)
    • Piezo buzzer with mute switch
    • RGB LED (NeoPixel compatible)

    Applications

    • Mobile robots
    • Robotics education
    • Automation systems
    • Arduino and Python-based robotics projects
    • Multi-motor robotic platforms
    • IoT and embedded control applications
    • Robotic arms and motion control systems
    • STEM and engineering education

    Advantages

    • ✔ Plug-and-play motor testing system
    • ✔ Advanced LED status feedback
    • ✔ Supports multiple programming languages
    • ✔ High-performance RP2350 processor
    • ✔ Suitable for both beginners and advanced developers
    • ✔ Ready to use with pre-installed CircuitPython
    • ✔ Flexible expansion with GPIO and Maker Ports
    • ✔ Ideal for educational, research, and commercial robotics projects
