Reactor V1.2 Dual Motor Driver Preorder (Shipment 15 October)

Quick Note: If you are unable to place your order through our JSumo website, you can visit our Etsy store to make your purchase. The same free shipping and full package contents apply, and orders will be shipped via DHL Express between October 13–15.

Unleash the Power of Ultimate Control for Your DC Motors!

Dear robot builders and tech enthusiasts;

We're thrilled to present to you our latest launch from JSumo, the Reactor Dual DC Motor Driver Board! Designed for all type robotics projects to empower with high current specs.

Reactor is not just a basic motor driver – it's a powerhouse engineered to take your robotics experience to the next level from the center of robot projects, drive trains. Whether you're a hobbyist, a robotics enthusiast, Reactor is designed to meet and exceed your expectations with highly engineered design and working values.

We have spent years of experience on mobile robots to create a very powerful and trouble-free motor driver, and after long tests, we present you the Reactor DC motor driver board Version 1.2.

✅ Dual Independent Control: Drive two independent DC motors simultaneously with precision and efficiency. Reactor empowers you with unparalleled control over your all motorized projects between 12V to 60V input. Suitable for combat robots, sumo robots, explorer robots and more.

✅ High Voltage, High Current: With an impressive capability to handle up to 60V and 100 Ampere (burst 200A) output, Reactor is ready to tackle the most demanding applications from Combat robots to explorer robots. For heavy-duty robotics to high-performance robot projects, Reactor has got you covered.

✅ Advanced MOSFETs for High Current Operation: Reactor utilizes cutting-edge modern MOSFETs to ensure efficient power delivery and minimal heat dissipation, allowing your motors to operate at their peak performances without compromise.

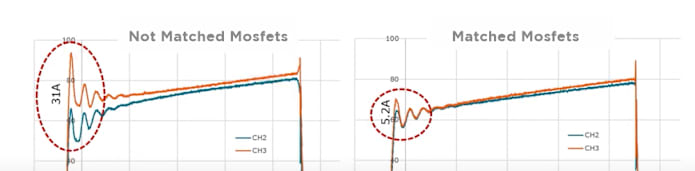

✅ Matched & Doubled MOSFETs for Current Sharing: Due to their structure, MOSFETs can have different current carrying characteristics from each other in a special situation called "Miller Plateau" during switching. This is a natural situation that occurs due to minimal differences in gate voltages. However, MOSFETs need to be matched for the highest performance. We apply this to all components for Reactor.

✅ Current & Voltage Feedback: Gain insights into your motor's performance with Reactor's integrated current and voltage feedback system. Stay in control by monitoring robot's vital values. Current  levels of each channel also recorded to controller's memory and can be used as datalogging. You can use these values for evaluating the operating conditions of motors at projects.

✅ Versatile Applications: Whether you're building a precision complete machine, an agile robot, or a high-speed mobile robot, Reactor adapts to your needs. Its versatility makes it the perfect choice for a wide range of projects. Strongly recommended for all type (magnetic & non-magnetic) sumo robots and combat robots up to 50 Kg.

◆ 135mm x 67mm x 24mm dimensions.

◆ 153 grams weight without heatsink, 182 grams with heatsink.

◆ 12 to 60V Input Voltage (Connecting power supplies not recommended as motors have inductive kickback to main supplies, LiPo battery input recommended)

◆ Up to 100 Ampere continous each channel (100A soft limit, 200A hard limit)

◆ 4 Layer, thick copper PCB for lower heating at full current.

◆ Würth power terminals rated for 130A continous, Since they are screwed, they are a solid, rigid connection method for all high-vibration projects (such as combat robots, sumo robots). Connectors shipped with M4 Lock nuts.

◆ Highest ripple current adsorbing Rubycon electrolytic capacitors at rated voltages.

◆ X7S Ceramic capacitors for micro ripple supressions.

◆ Ramp (Acceleration and Deceleration) Setting Trimpot (Between 0mS Ramp to 2000mS) Current Setting Trimpot (Between 2A to 100A)

4+1 different Control method for all type projects:

DIR & PWM (Analog RC Filter Sampled),

Analog Joystick (Simulator Pan-Tilt Mode),

RC Mixed (Tank Drive),

RC Independent,

UART Serial-In

Peak current and peak voltage recording (basic datalogging) while working. That can be sent via UART TX output. (TX output can be active by Datalog Out Input).

◼ Over-Temperature Protection at both channels.

◼ Over-Current Protection with predictive control at both channels

◼ TVS based overvoltage supressors with RC and LC filtering at inputs.

Driver can easily control many DC motors between 12V to 48V line, such as:

◼ All Maxon RE50, RE40, RE35 High Power DC Motor series.

◼ Faulhaber 38mm Brushed Series.

◼ Mabuchi DC motors up to 2kw (i.e Mabuchi 550 Motor is 100w rated)

◼ 24V, 36V, 48V Wheel Chair Motors.

◼ Combat Robot Motors (Magmotor, Ampflow...)

◼ DC Brushed type Scooter Motors

It is easy, You can control motors by 4 different options. This options are usually found at many controllers like Sabertooth, Pololu, Roboclaw & Cytron brands.

- Direction/PWM (Speed) Control (Suitable for Arduino and 5V Logic MCUs)

- UART based Serial Packet Signal Control Input (38400 bps - very fast for all control options - Suitable with 3.3V MCU systems too)

- Dual RC Signal 50hz (analog) & 333hz (digital) inputs

- Analog Joystick Based Pan-Tilt Control (Suitable for Simulators, Camera Systems..)

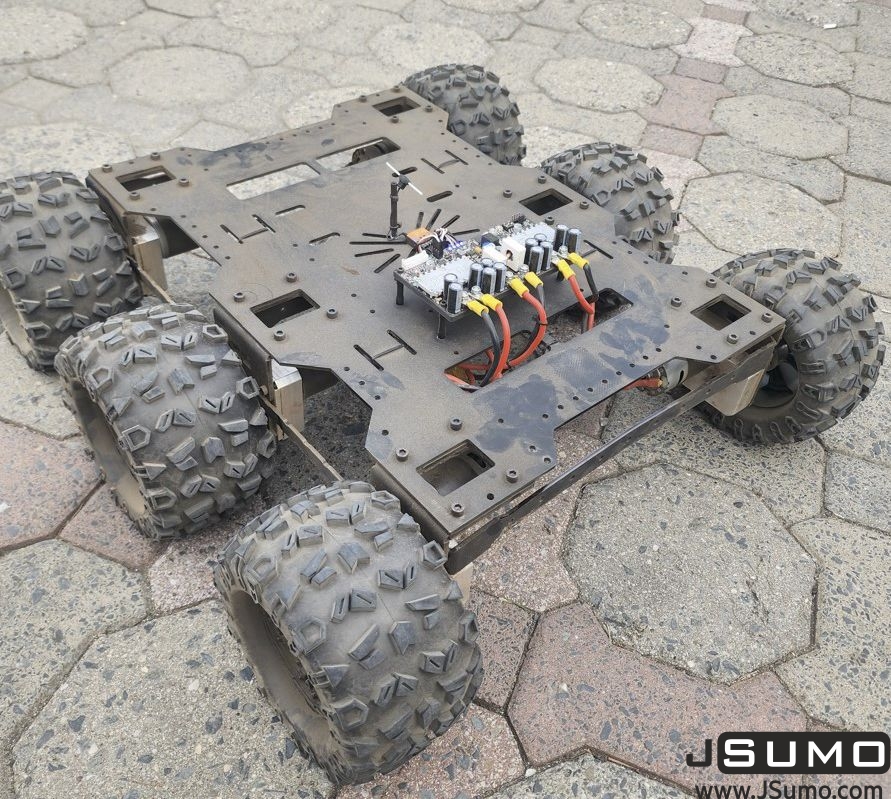

These control methods make our Reactor drive usable on all mobile robots that use brushed motors, suitable with 2 motors to 6 motors.

Reactor offers many different control methods. If we consider them.

The fastest control method is the DIR/PWM input method. This is a method we also use in sumo robots. The response time is under 500 microseconds (0.0005 seconds).  One pin for each motor controls speed and other one pin controls direction. (4 Pins for 2 DC Motors)

RC Mixed control is a control system designed for radio-controlled systems (such as RC sumo or tank robots). It works according to the amplitude of the signal used. In this control, the radio control remote control controls the forward and reverse speed and direction of 1 stick 2 motors, while the other stick controls the differential rotation (tank rotation) of the motor. It uses 1 RC input pin for each motor (2 pins for 2 DC motors).

Analog Joystick Control, This control is the control method we developed for automation and camera systems, An analog joystick controls 2 motors with 2 channels.

UART Serial Control, Allows you to control the speed and direction of 2 motors via 1 Serial pin. Speed ​​resolution is little lower than other control methods, but it has the advantage of the number of pins, control speed is 38400 bits per second (bps).

Disables the current sensor limiting algorithm after 100A currents (Only activate this on systems you are sure are working properly.). Sport mode can be selected at all type input modes.

Our dual-output DC motor driver is a special motor controller equipped with the latest MOSFET technologies. Developed through years of experience and technical expertise, this product is now available for pre-order at a significantly reduced price — 30% to 50% more affordable than similar products — and with free worldwide DHL Express shipping.

The reason we are keeping the price of this high-tech motor driver affordable is our goal to make it widely accessible within the robotics community. After the initial group of sales, the price will return to the regular list price.

Reactor comes as a complete set to help you bring your project to life. The set includes:

- Reactor Mainboard x 1
- Closed Type Wire Terminals x 6
- Fork Type Wire Terminals x 6
- JST PA 10 Housing x 2 (PAP-10V-S)
- JST Precrimped Wire x 10

Reactor V1.2 (Current Version - October 2025) - Regulator layout update, Uart control interval changed from 0 to 255 to 1 to 255 (Thanks to Hayato Minami about informing us that UART bug as when board stays at idle 0 value was turning motors), Status leds changed to multicolor type, Enable Input Added, Reset Control Added.

Reactor V1.1 (May 2025) - Full layout update (Capacitor blocks and output terminal layouts changed), Dimension decreased from 140 x 73 to 135 x 67mm, UART output and Bluetooth diagnostics Added.

Reactor V1 (December 2024) - Launch

OLD - Version 1 Launch Video.
