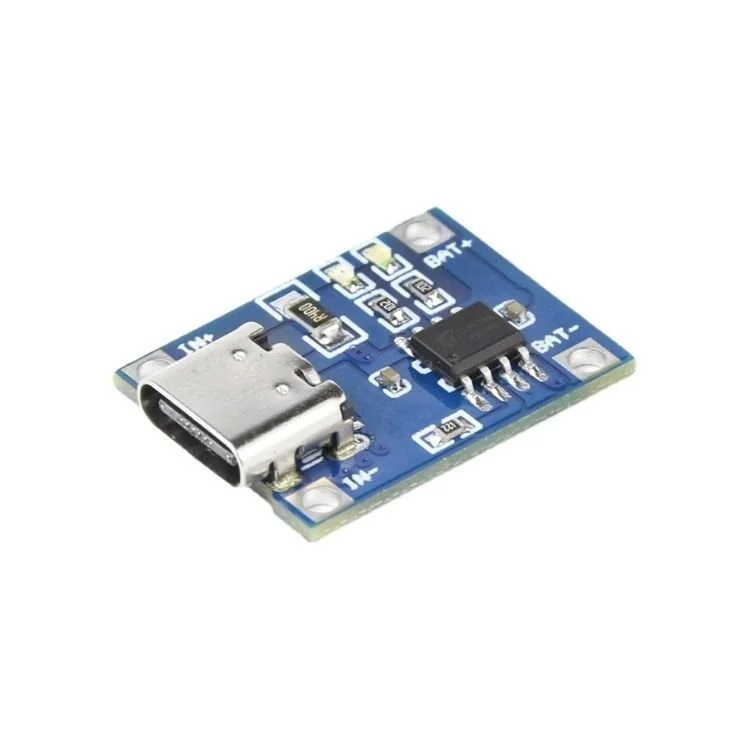

TP4056 - 3.7V 1A LiPo Battery Charging Module with USB Type-C Input

Product Code: JS17555
Comments (0) | Add Comments
0.52 USD

Quantity

Stock: In stock (14 Pieces)

Add to Favorites
  • Features
  • Dimensions
  • Comments (0)
  • Payment Options
  • How Will We Ship To You?

  • TP4056 - 3.7V 1A LiPo Battery Charging Module with USB Type-C Input

    1A LiPo Battery Charger Module (Type-C)

    The 1A LiPo Battery Charger Module is designed for charging single-cell (1S) lithium batteries operating between 3.6V and 4.2V, using the onboard TP4056 linear charging IC. With an output voltage accuracy of ±1.5%, the module can be powered either through its USB Type-C connector or via the onboard input terminals (IN+ and IN-) with a supply voltage ranging from 4.5V to 5.5V.

    The charging current can be adjusted by replacing the onboard Rprog resistor. The corresponding resistor values for different charging currents can be found in the "Rprog" table of the datasheet, or calculated using the formulas provided in the datasheet.

    Features

    • Overcharge protection
    • USB Type-C input
    • Red and Blue LED indicators
      • Red LED: Charging in progress
      • Blue LED: Charging complete
    • Input Voltage: 4.5V – 5.5V
    • Adjustable Charging Current: 0.13A – 1.2A
    • Output Voltage: 2.9V – 4.2V (The IC automatically regulates charging current and voltage according to the battery's condition)
    • Output Voltage Accuracy: ±1.5%
