0.7 Module (36.3 Pitch) 18T Pinion Gear - Ø6mm

0.7 Module (36.3 Pitch) 18T Pinion Gear - Ø6mm

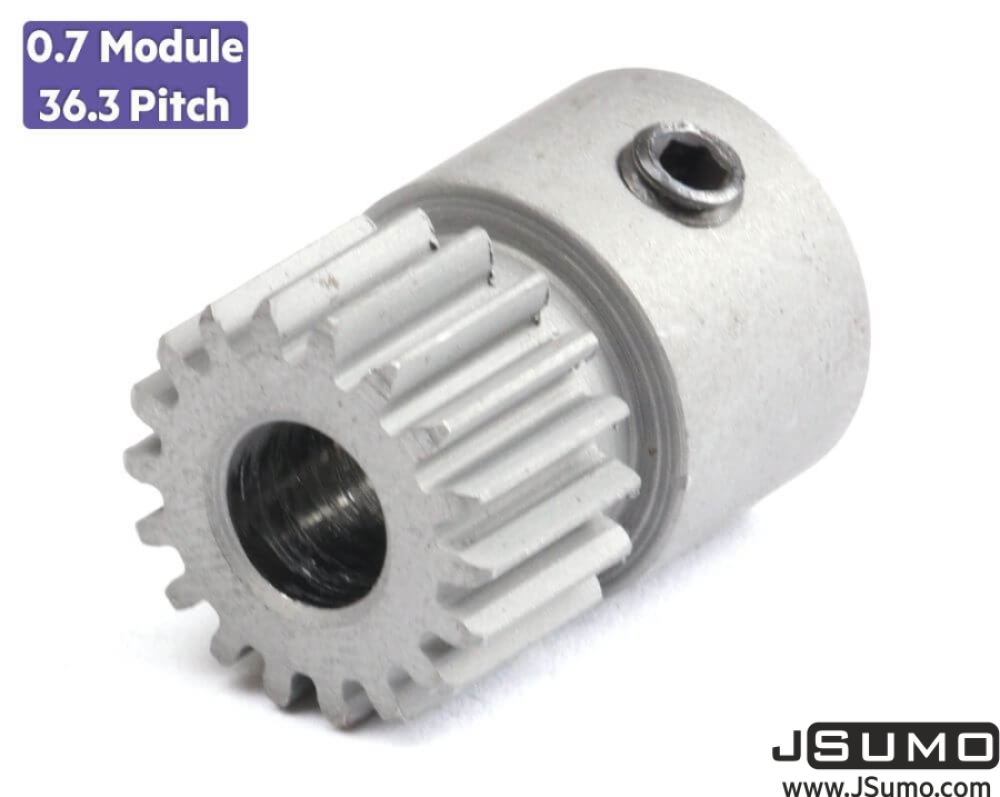

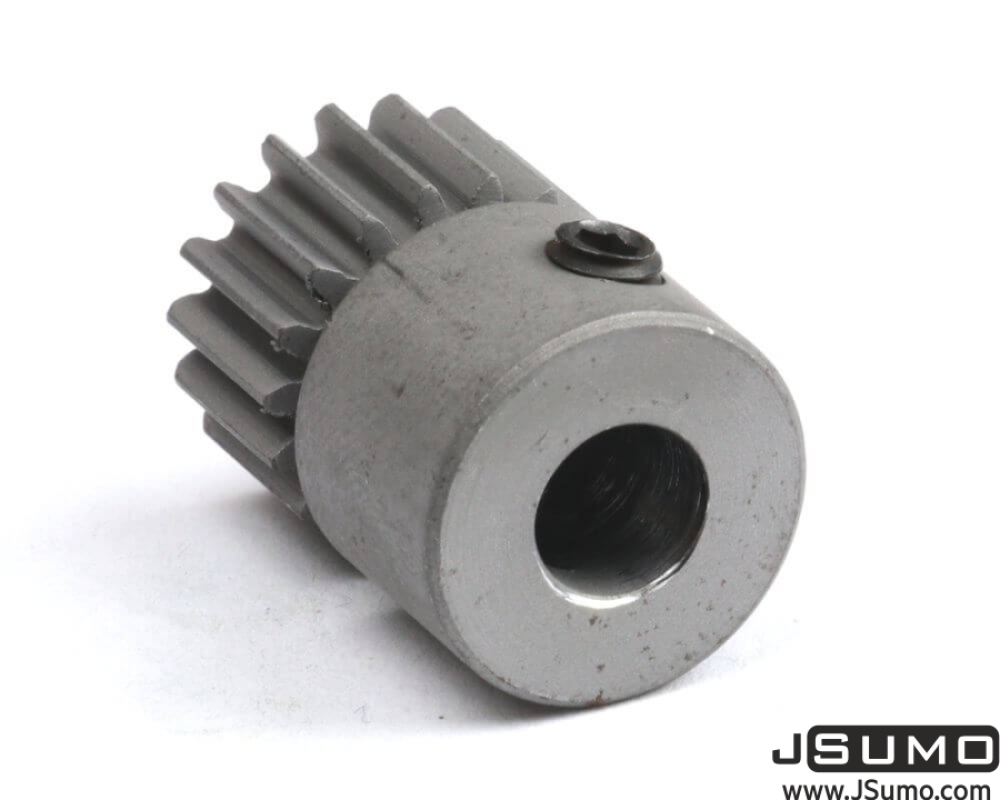

The 0.7 Module (36.3 Pitch) 18T Hardened Steel Pinion Gear with 6 mm Bore is a precision-engineered gear designed for high-torque power transmission in robotics, industrial machinery and custom gearbox applications. Manufactured from hardened steel, it offers exceptional wear resistance, strength and long service life in demanding operating conditions.

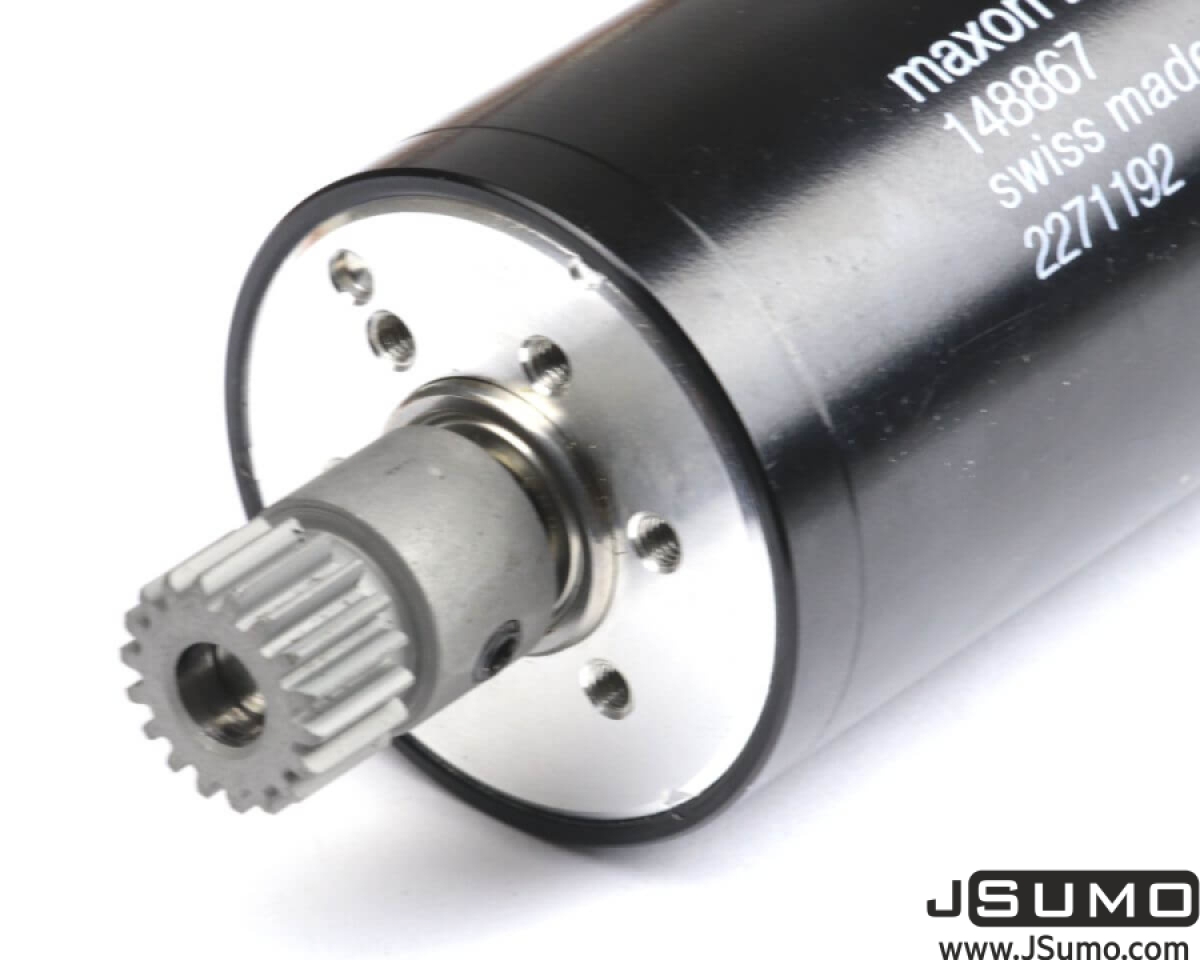

Featuring an 18-tooth profile and a 0.7 Module (36.3 Pitch) standard, this pinion gear meshes accurately with compatible spur gears to provide smooth operation, precise motion control and efficient torque transfer. The 6 mm bore fits standard 6 mm motor shafts and mechanical shafts, while its 7.6 mm gear width increases the tooth contact area for improved load distribution and durability.

Designed for high-performance mechanical systems, this gear is an excellent choice for sumo robots, combat robots, custom gearboxes, DC motor drive systems, CNC machinery, automation equipment and industrial power transmission applications.

Technical Specifications:

Product Type: Spur Pinion Gear

Material: Hardened Steel

Module: 0.7 Module (36.3 Pitch)

Number of Teeth: 18T

Overall Thickness: 20.2 mm

Gear Thickness: 7.6 mm

Outside Diameter: 14.1 mm

Bore Diameter: 6 mm

Weight: 15.8 g

Applications:

• Sumo Robots
• Combat Robots
• Robotics Projects
• DC Motor Applications
• Gear Reduction Systems
• Custom Gearboxes
• Industrial Automation
• Mechanical Power Transmission
• CNC Machines
• R&D and Engineering Projects

Important Note !

This gear is designed for 0.7 Module (36.3 Pitch) gear systems and should only be used with compatible gears to ensure proper gear meshing and efficient power transmission. The 6 mm bore is suitable for standard shafts and motor shafts used in robotics, automation and industrial mechanical systems.
