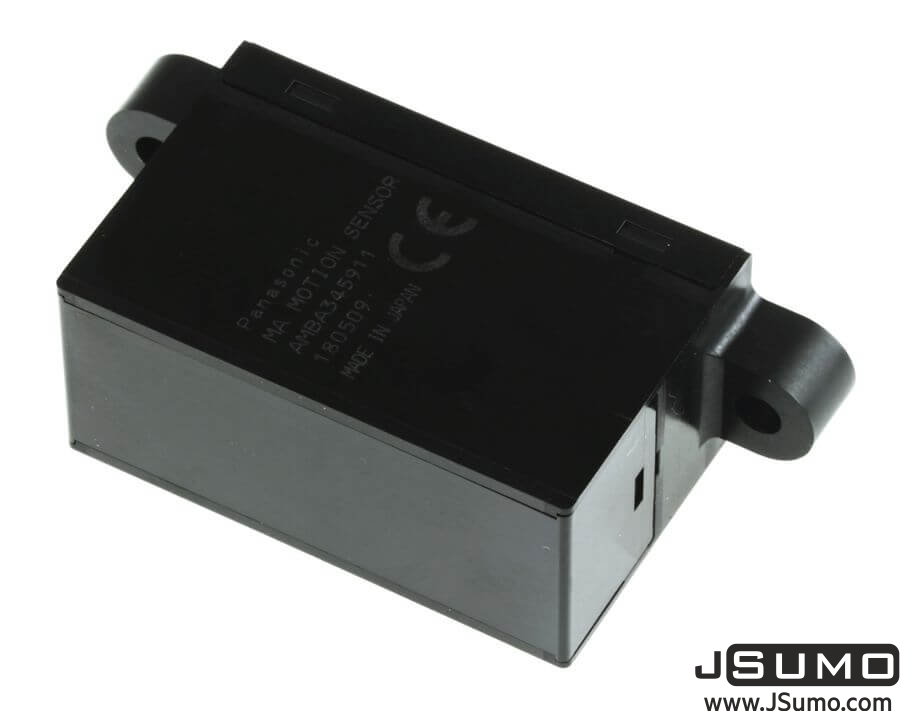

AMBA345911 Long Range Infrared Motion Sensor

Product Code: AMBA345911
64.90 USD
limited stock robot part
  • Features
  • Dimensions
  • Comments (0)
  • Payment Options
  • How Will We Ship To You?
    • Used by hundreds of Japan Sumo robots for it's superior black surface detection when compared traditional diffuse type sensors now in JSumo stocks!
    • Updated models (AMBA345911 vs AMBA45911 ) offers %30 smaller volume for same sensitivity and range.
    • You can remove protective limiter cap for bigger sense area as in 1st picture.
    • We are sending sensor with special connector and crimp pins. You need to use 26 to 30 AWG cable for making backside connector.

    Model Code AMBA345911
    Triggering function Built-in oscillation circuit type (Internal trigger)
    Output method NPN open collector output
    Mounting Direction V Type
    Operating (V.DC) 4.5 to 5.5
    Current 6.2mA / 11.2mA
    Rated detection distance (cm / inch) 110cm / 43.307 inch
    Measuring Cycle 8mS
    Weight (g) 15 gr.
