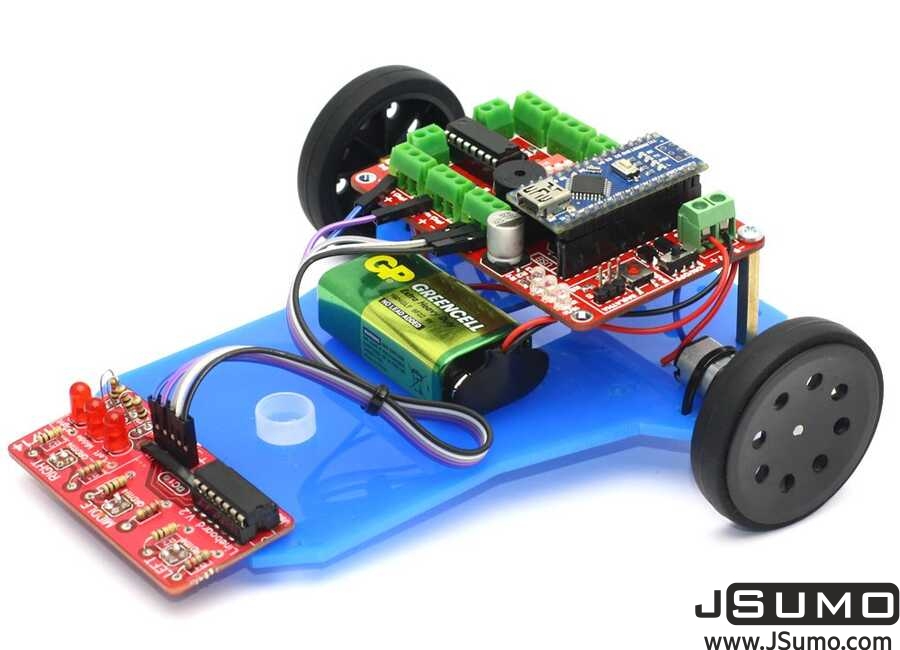

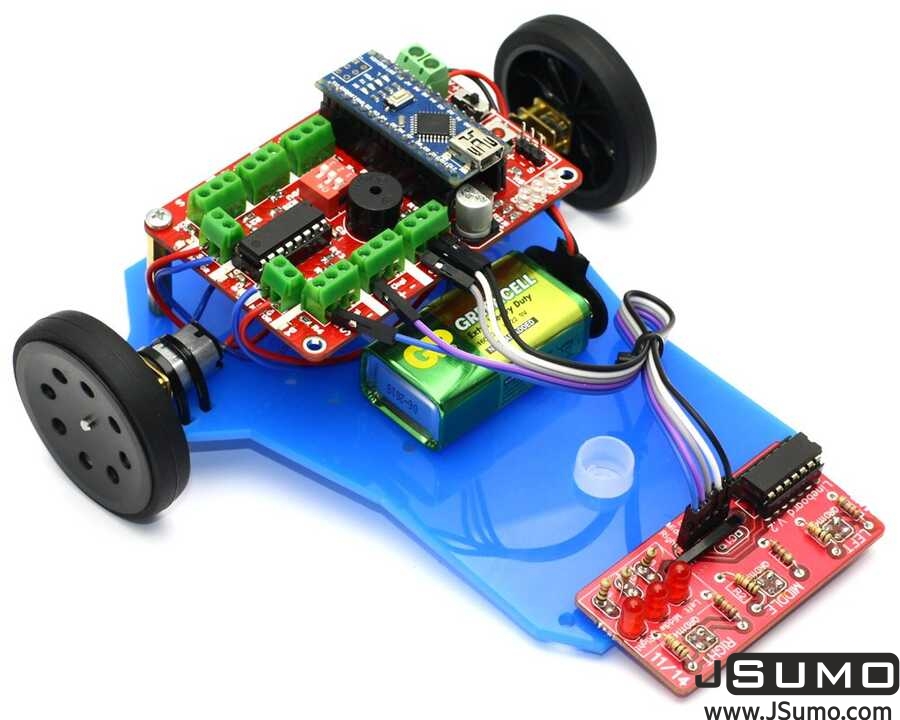

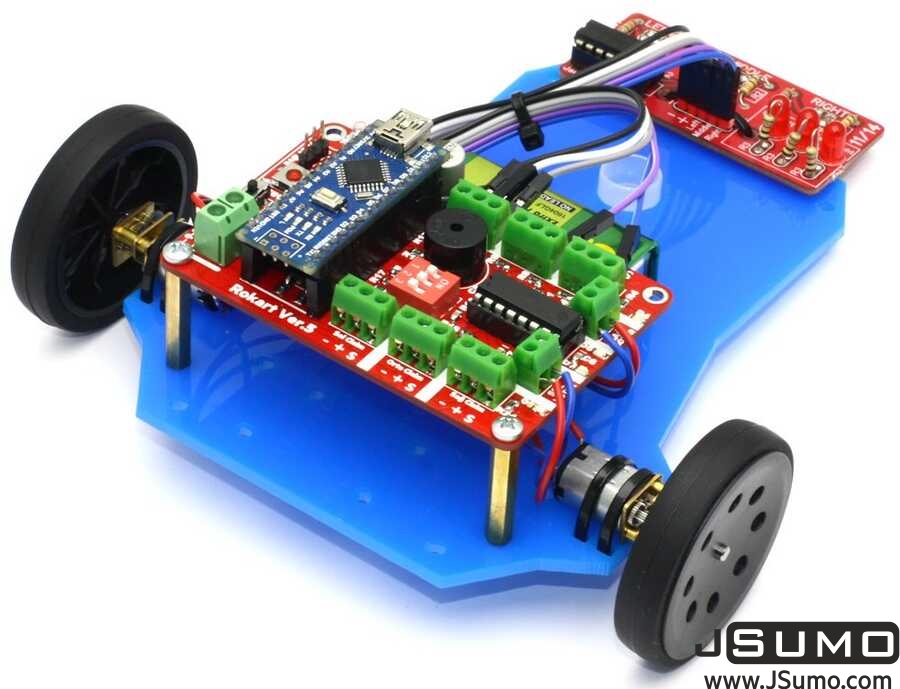

Follow Me Line Follower Kit

The line follower robot is one of the easiest types of robots to make for those starting out in robotics. With the Follow Me Line Follower Robot Kit, you can quickly and easily step into the world of hobby robotics.

Our robot kit comes unassembled with all the necessary components included, and can be built in about one hour. If you purchase the assembled version, you can start using it right away.

The Line Follower Robot Kit uses Easyboard and LineTracker boards and is open to development.

High-quality materials, high-quality performance:
The Follow Me Follower Robot Kit is made from carefully selected components. The robot’s program has been written to maximize the performance of the included parts.

It uses an Arduino Nano microcontroller and an L293D motor driver.
The program is written in Arduino and will be provided free of charge to anyone who purchases the kit.
You can modify the code as you wish — the robot is fully customizable and developer-friendly.

While operating, the motors do not spin at constant speeds; their speed varies depending on the line position. Even if the robot veers off the line, it is programmed to correct itself and return to the track.

It can operate on both black-line-on-white and white-line-on-black tracks.

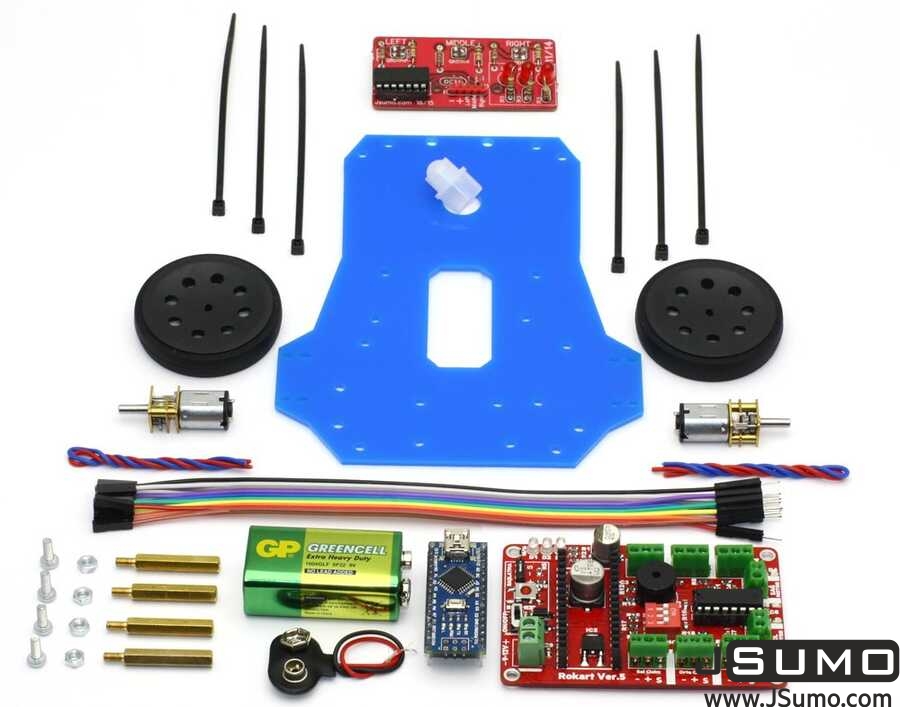

What's Included?

• 1 × Easyboard v1.0 Robot Controller

• 1 × Arduino Nano

• 1 × LineTracker Line Sensor Board (Unassembled)

• 2 × 6V 300rpm Micro Metal Gear DC Motors

• 1 × 5-Pin Female-to-Male Jumper Cable

• 2 × Thin Rubber Wheels

• 1 × Mini Plastic Caster Wheel

• 4 × Metal Standoffs

• 4 × Plastic Cable Ties

• Screws and Nuts Set for Assembly

• USB Programming Cable

• Assembly Manual (With mail)

Powered by a 9V battery (Duracell recommended, not included in the set).
