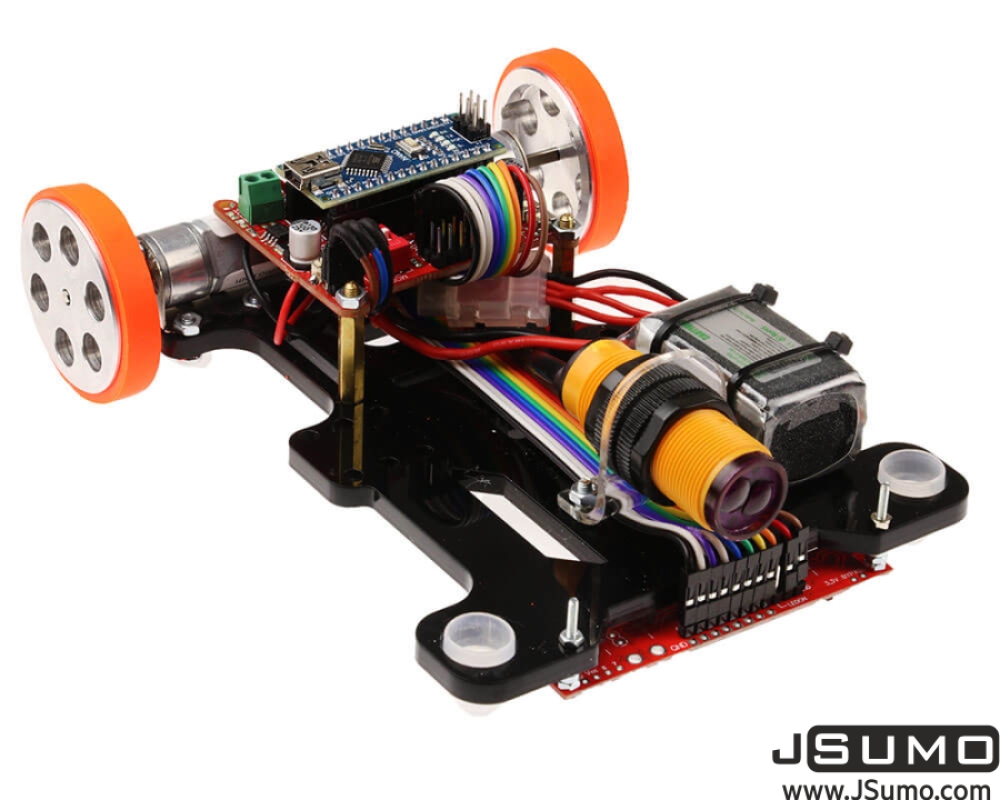

  • Drag Racer Line Follower Robot Kit (Unassembled)
    There are many different aspects to be considered in the construction of a fast line follower robot. If you are going to participate in the fast line follower robot competition, you must design your robot according to the rules of the competition you will participate in. Generally, you need to use a door-sensing sensor to detect the starting gate on the track. You can use JS40F Infrared Object Sensor or MZ80 Infrared Object Sensor in your robot. Other general rules are the dimensions of the robot, start times, etc. You can learn these rules from the competition rules section of the robot competition you will participate in.

    The mechanical set of our Drag Racer- Line Follower Robot Kit is inspired by Japanese style fast line follower robots. It is a fast line follower robot kit, all materials of which are designed by Robotus. Complies with MEB robot competition 2023 official rules (within 12cm x 16cm x 5cm Limitation)

    What are the Differences of Drag Racer- Line Follower Robot Kit from Other Line Follower Robots?
    The design of the Drag Racer- Line Follower Robot Kit was inspired by Japanese style fast line follower robots. 4 The motor has a high-strength and light body that you can place. In addition, the fast line follower robot code is written with PID control. In this way, it calculates the deviation rate of the robot from the line and follows the line perfectly. In addition, the arduino software is open source and you can develop code.
    There are PROFAST series High Speed DC Motors specially produced for line follower robots. In order to transmit the DC Motor power to the line following track at the maximum level, the Electron Silicone Wheel series is used. The Electron Silicon Wheel model is a popular wheel model accepted by 100's of robot teams around the world.
    8 Line sensor and Wing Fast Line Follower Robot Control Board are other electronic components used on the robot.
    It is powered by a 11.1V Lithium Polymer battery. LiPo batteries are a special type of rechargeable battery that can deliver high current. You can use it for many years under appropriate storage conditions.
    You can get free technical support from our team for the Drag Racer- Line Follower Robot Kit, which has an advanced software capable of speed control.

    What are the Features of Drag Racer- Line Follower Robot Kit
    Balanced design that provides high acceleration (traction) with 2 motors.
    Motors are JSumo Brand closed geared high speed 4000 Rpm model.
    3-cell LiPo Battery capable of delivering 12.6 Volts and high current at full charge (12 Ampere, Continuous 5 Ampere)
    QTR-8RC line sensor with 8 line sensors
    Specially formulated 39mm diameter silicone wheels that provide the best grip on the ground (Wheels are fully compatible with motors)
    It comes with the MZ80 sensor, which can be adjusted up to 50cm range to detect the starting wall.
    Wing Arduino Nano board for easy connection and development (motor driver, voltage regulator, Arduino Nano comes ready on the board)

    What are the Materials Used in the Making of the Drag Racer- Line Follower Robot Kit

    What is Included at Drag Racer- Line Follower Robot Kit?

    • Arduino Nano Clone + USB Cable
    • Wing Fast Line Follower Robot Card
    • MZ80 Infrared Object Sensor
    • QTR 8RC Infrared Line Sensor
    • Profast 12V 4000RPM DC Motor x2
    • Electron Silicone Wheel x2
    • 16mm Motor Mount x2
    • MZ80 Plastic Apparatus
    • 11.1V LIPO Battery
    • Drag Racer- Line Follower Robot Body
    • Mini Plastic Drunk Wheel x2
    • JST Battery Connector Cable
    • Female Male 20cm Jumper Cable x10
    • DC Motor Connection Cable x4
    • Metal Distance x4 for connection
    • M3 Screw and Nut set
    • M2 Screw and Nut set
