STM32F103C8T6 Development Board

Product Code: JS20617
Comments (0) | Add Comments
4.27 USD

Quantity

Stock: In stock (42 Pieces)

Add to Favorites
  • Features
  • Dimensions
  • Comments (0)
  • Payment Options
  • How Will We Ship To You?

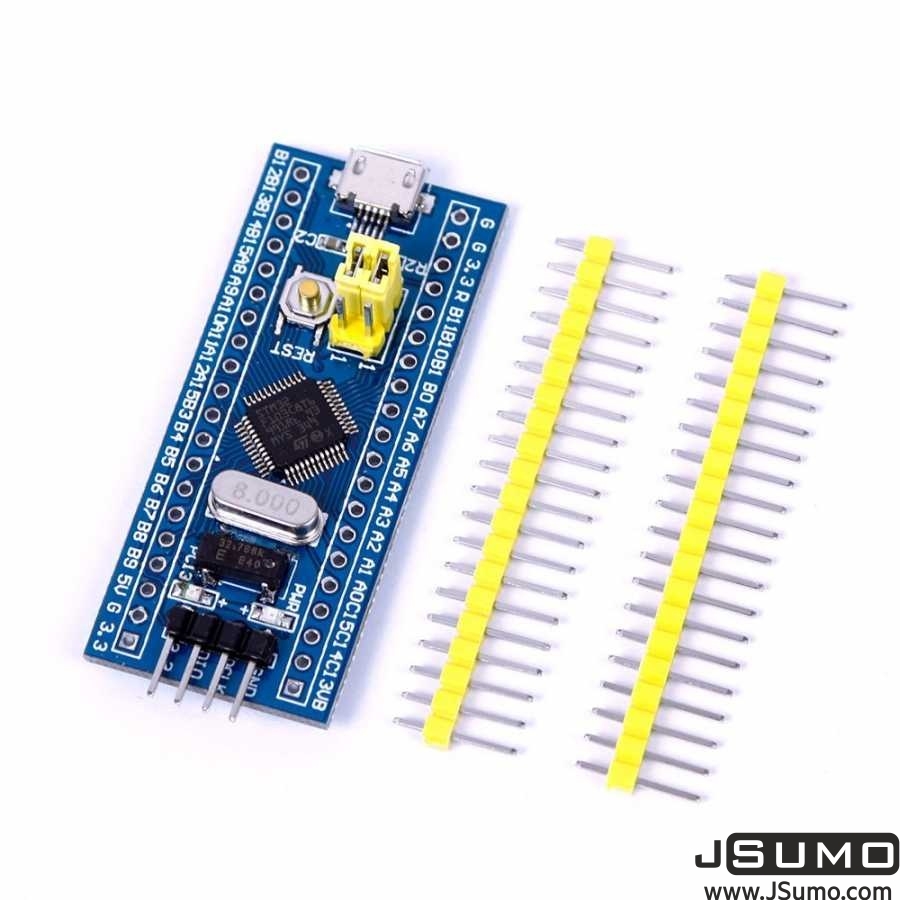

  • STM32F103C8T6 Development Board

    The GSTM32F103C8T6 Mini Development Board is an Arduino Nano-based development board.

    Easy debugging is possible with the SWD simulation and debug download interface. Communication with the board is via the Micro USB interface. The Epson RTC crystal is simple and stable. The Hedaer pins come solderless from the factory. Keil and IAR can be used as debuggers. J-Link or USART1 can be used.

    Features:
    The most basic MCU circuit is based on the 8M and 32768 crystal circuit, along with the USB power circuit.

    The core board is divided into two lines leading to all I/O ports.

    The SWD simulation and debug download interface is simple and convenient, and debugging is fast.

    Using the Micro USB interface, it can be used as a USB communication and power source, compatible with ordinary Andrews mobile phone charging interfaces.

    The Epson RTC crystal is easy to start and more stable.

    STM Development Board Specifications

    Pin count 48
    Processor Cortex-M3
    Operating Frequency 72MHz
    Storage 64K Byte Flash, 20KByte SRAM
    I2C 2x SPI, 3x USART, 2x I2C, 1x CAN, 37x I / O ports
    Analog-digital  2x ADC (12-bit / 16-ch)
    Timers 3 genel timer ve 1 advanced timer
    Debug Download Support JTAG / SWD debug interface to download, support for IAP
    RT9193 3.3V regulator chip, 300mA max. out voltage
