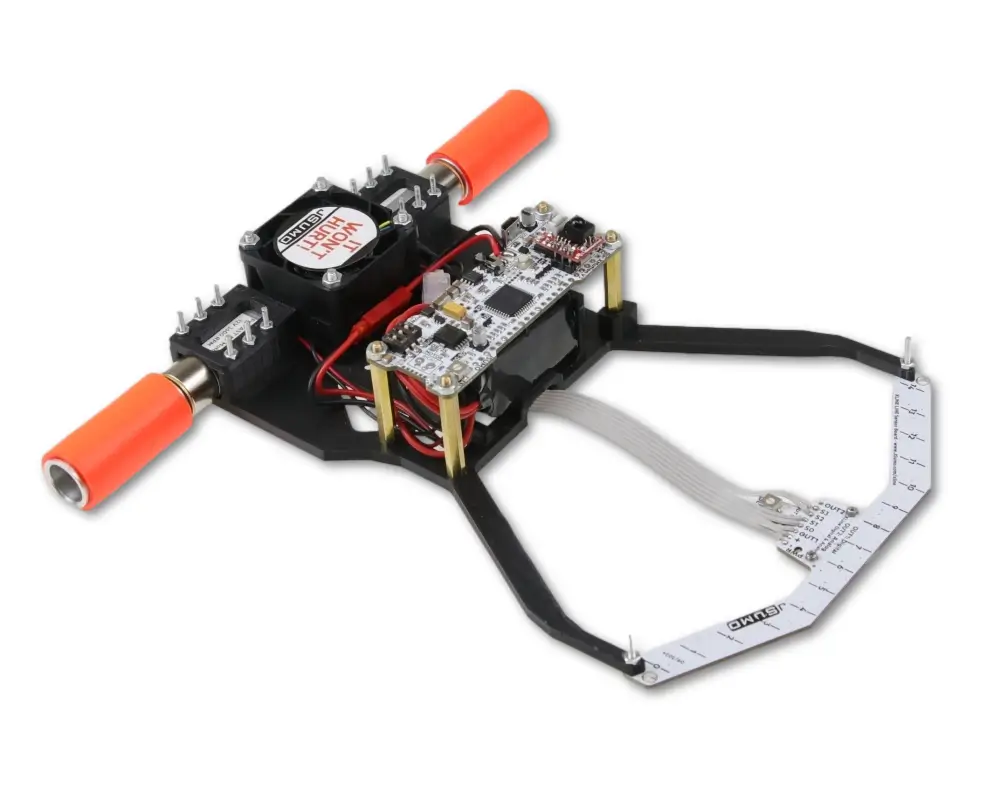

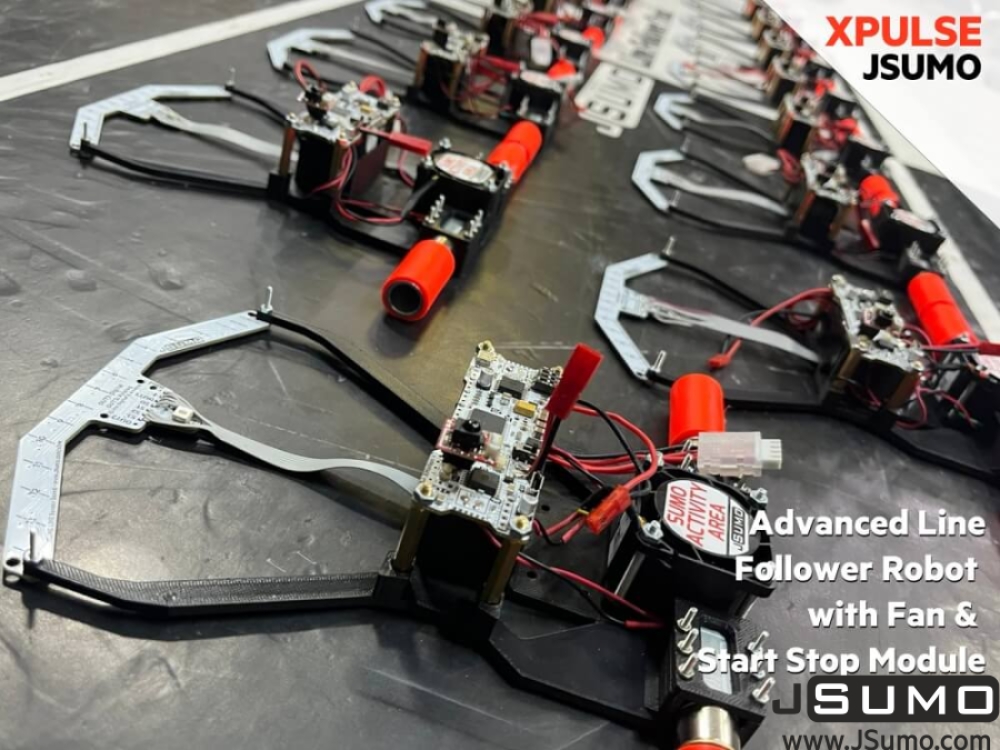

Our newest product: Xpulse, is a highly maneuverable, low-center-of-gravity, line-following robot.

This advanced line following robot can adapt to long line following courses, capable of traversing both black surface, white lines and white surface, black lines (Designed for 15 to 25mm width line follower tracks).

With Microstart module and Sony remote you can start and stop the robot remotely. With this simple but important feature, you can easily stop the robot if it goes off the track, and you can also start it without bending down or pressing any buttons.

How it works?

The robot's operating system primarily uses an line sensor board (Xline) with 15+1 sensors to control our main controller board (XMotion). Based on the line information from the sensor array, the Xmotion controller controls the motors with different speeds at PD control (Proportional + Derrivative Control).

This robot has features to solve the common problem of slipping in line following robots. These include:

1. A high powered fan that creates a virtual load to increase ground grip.

2. A smooth and long wheel (JS2042) that improves maneuverability and exhibits low inertia.

Why 15+1 Sensors?

The Xline sensor board we use in this robot has 15 line sensors arranged in a V configuration, plus an additional set of line sensors in the bottom row.

In this way, sensors 7 and 16 are in the same row, allowing the robot to be detected as being perfectly perpendicular to the line. In the code, we apply an additional speed boost when both sensors detect the line.

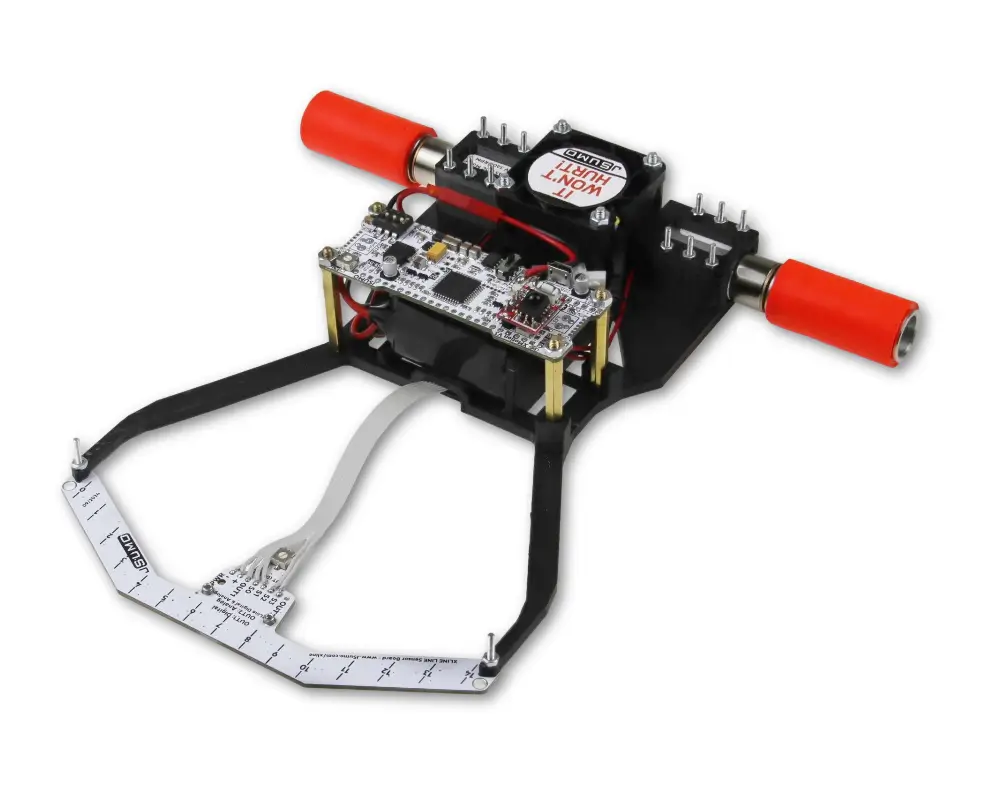

Robot Features

16 Sensor with tunable threshold (changing trimpot is at Xline Sensor Board)

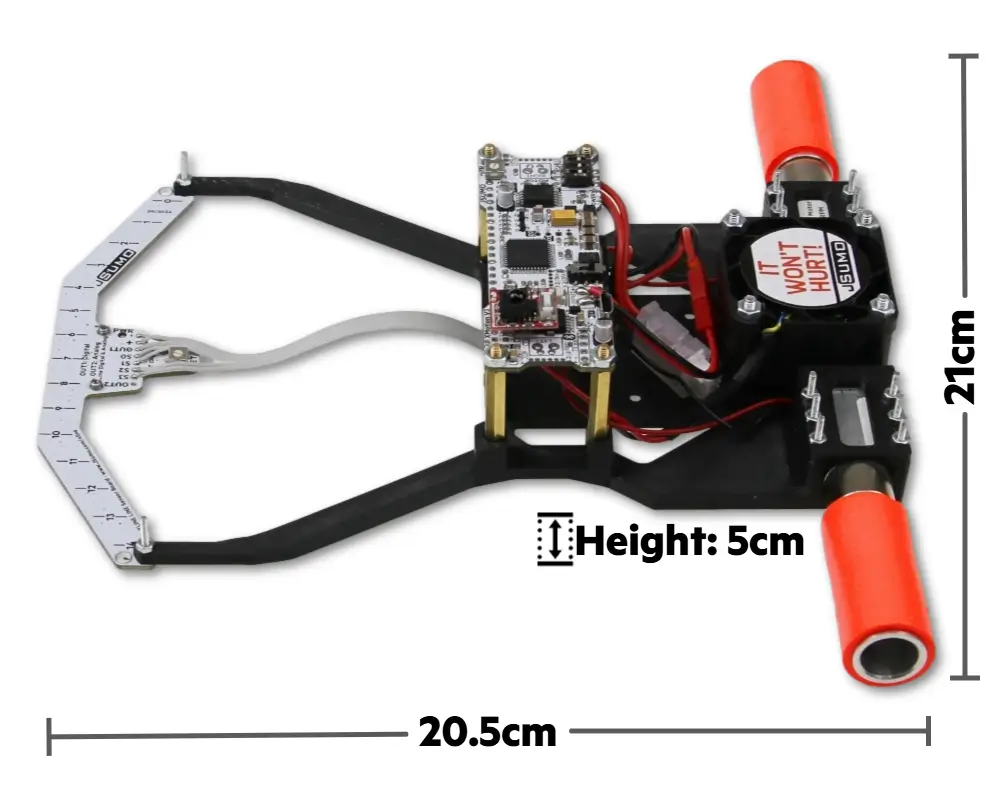

21 x 20.5 x 5cm dimensions with only 270 grams weight.

Working voltage: 12.6V (with 3S LiPo Battery)

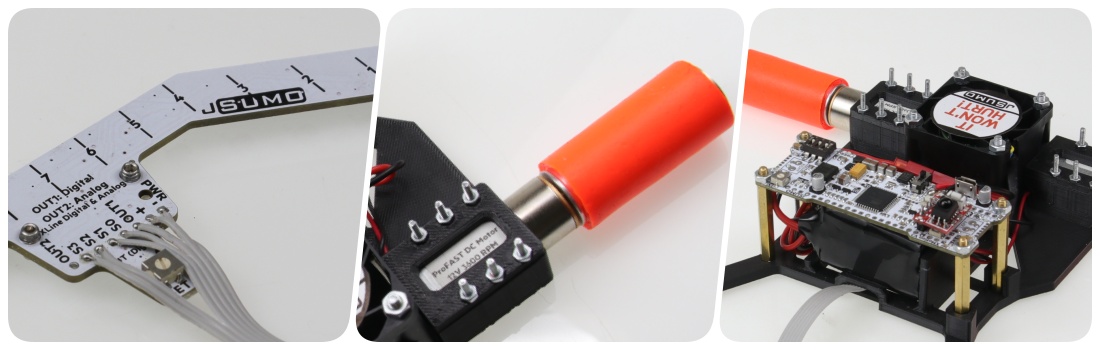

Robot Parts Used (Shipped as Assembled & Tested)

XPulse Line follower robot uses the best robot parts for advanced line follower. A complete list of these materials is available below.

• Profast 3600 Rpm fast & high acceleration DC Gear Motors x 2

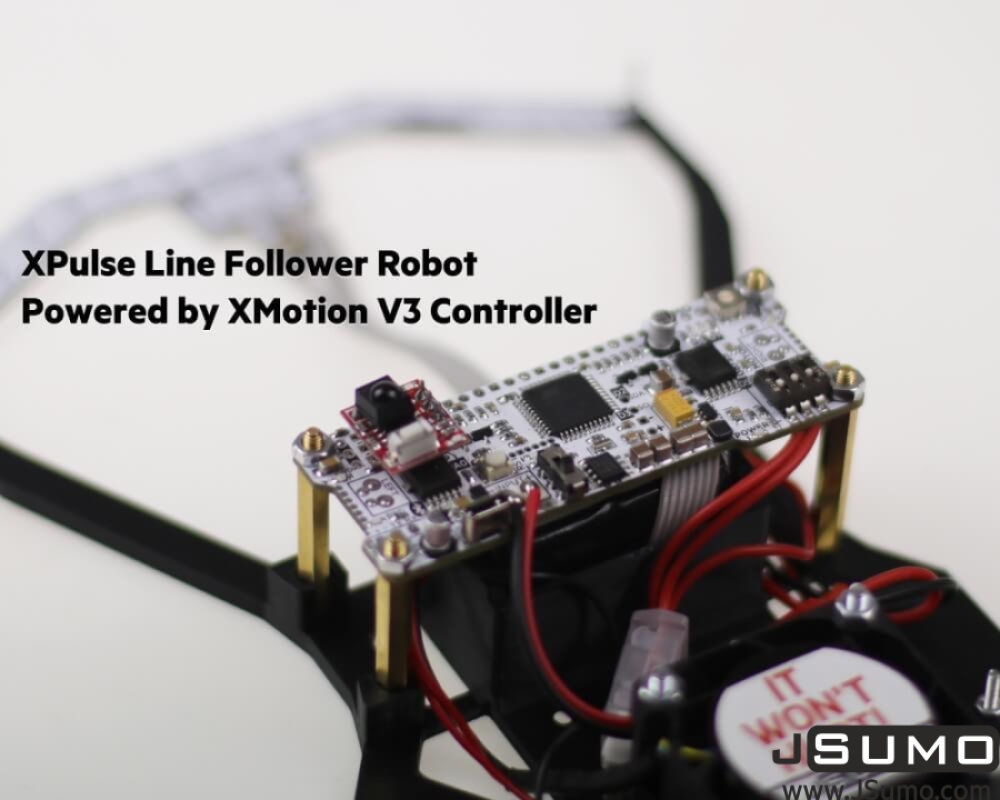

• XMotion V3 All In One Arduino Based Controller x 1
• XLine V2 16 Line Sensor Array Module x 1
• JS2042 Silicone Wheel x 2
• Brushless 40x40mm Fan x 1
• 3S 450mah 12.6V Lipo Battery x 1
• JST 2.54mm Pitch Male Plug x 1
• Microstart Robot Start Module x 1

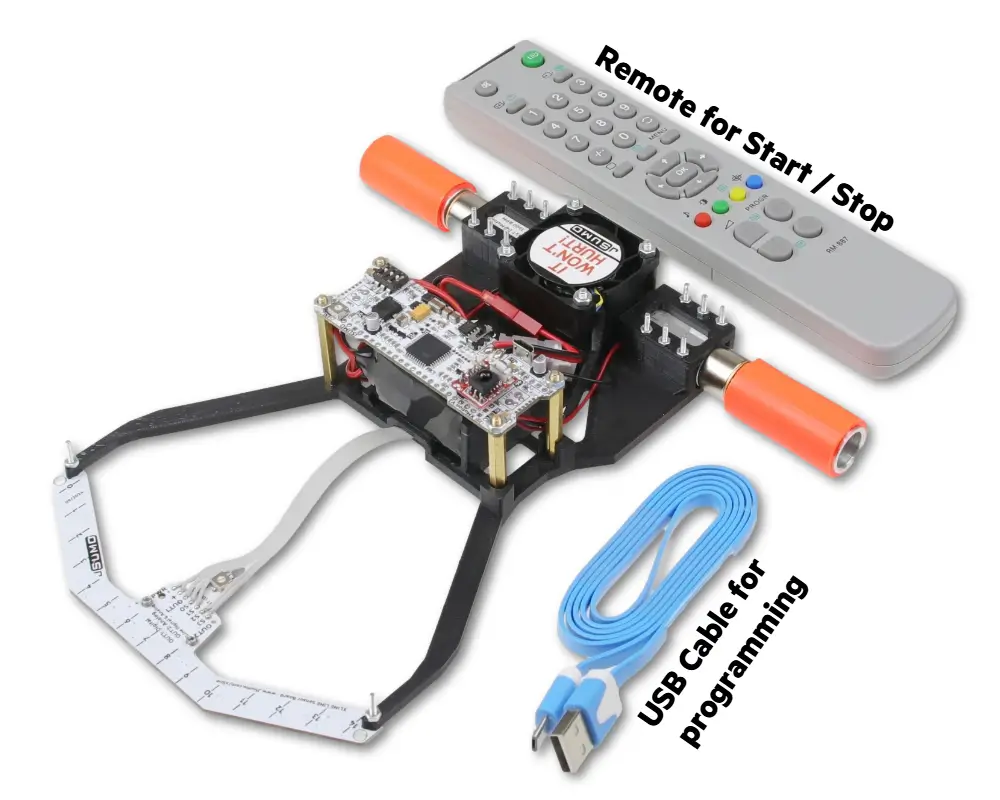

• Sony Remote x 1 (For Starting Robots)
• Durable but semi-flexible 3D printed robot body x 1 (STL file also sent to customers)
• USB Programming Cable x 1
