ATLAS All Terrain Explorer Robot 4x4 (Mechanical Kit - No Electronics)

Product Code: ATLASMK_HS
390.00 USD
Motor Speed Option:


Stock:In stock (19 Pieces) Add to Favorites

Jsumo Robot parts shipment and price information
  • Features
  • Dimensions
  • Comments (1)
  • Payment Options
  • How Will We Ship To You?

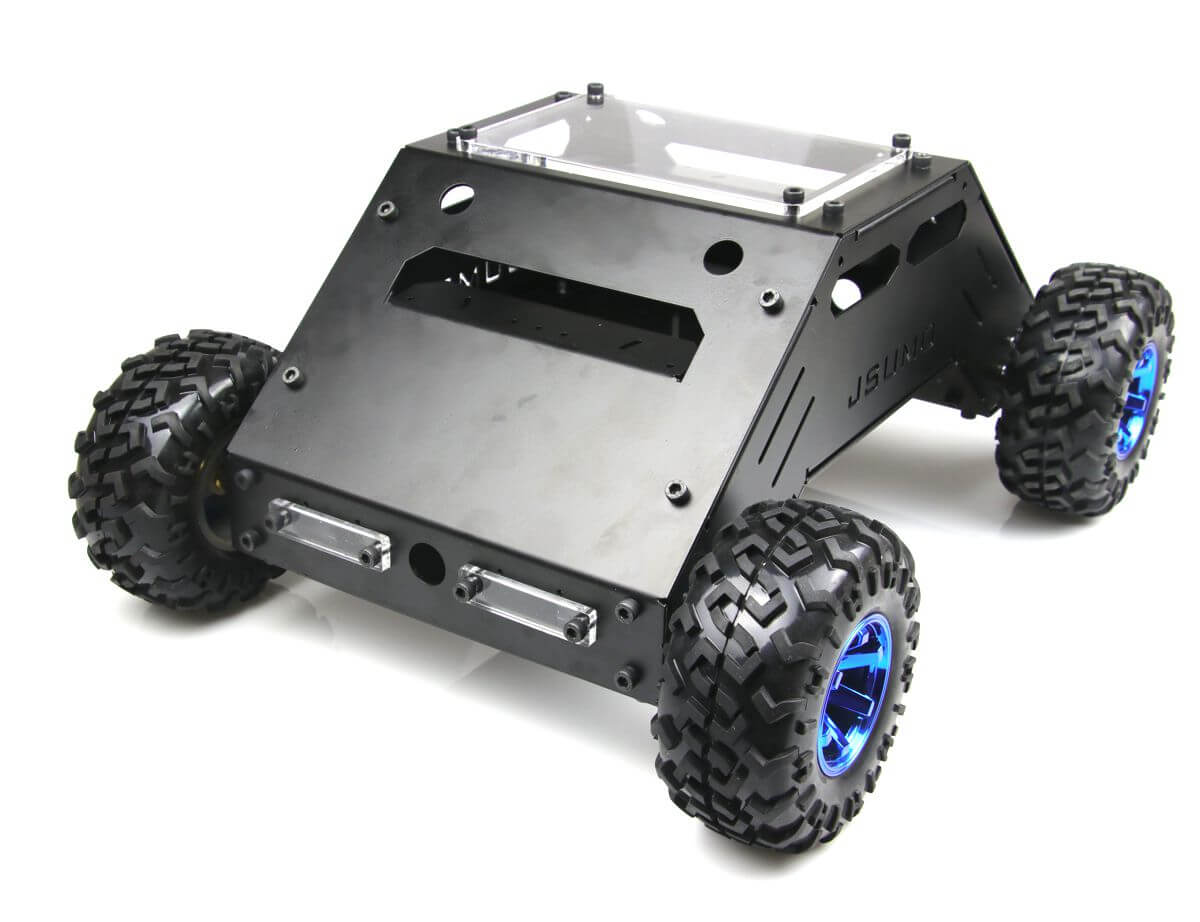

  • Meet the powerful 4x4 All-Terrain Robot! Get more control with 4x4 Drive Design.

    With its robust body and lightweight aluminum panel construction 4WD Robot is versatile platform for explorer robot projects.

    4WD Robot has high mobility with 4 gear motors directly connected to the wheel.

    At high speed version 12V 500 RPM model selected, It gives approximately 100 cm second speed.

    Controlled by tank driving system. (4 Motor is paralelled as Left and right channel 2-2).

    Kit comes with large 125mm diameter wheels for easy movement over any terrain.

    Atlas 4x4 Robot Mechanical Kit Includes
    • Laser Cut Metal & Thick Black coated 2mm Terrain Robot Body Parts (4 Pieces)
    • 1 x Laser Cut Lexan Transparent Cover
    • 4 x Laser Cut Lexan Transparent Front & Back Light Covers
    • 4 x High Power Titan 500 Rpm Motors
    • 4 x Semi-Pneumatic Wheels (130mm x 59mm)
    • 4 x 12mm Hex Wheel Hub
    • 30 x M3x6mm Philips Head Machine Screw
    • 52 x M5x8mm Hex Socket Bolts

    Note: Robot platform mechanical parts are shipped as unassembled. All holes are M5 Tapped so no need to use tappig tool. Just use allen wrench and assemble. Assembly takes 15 minutes.

    Note 2: This model is high speed version. High speed version is suggested for small obstacles passing (Up to 7 cm) For high torque model we can replace gear motors with 200 RPM slower and higher torque versions.

    Dimensions, Weight & Speed

    Width: 36.8cm
    Length: 46.4cm
    Height: 20.7cm
    Mass: 3200 grams (Total weight, without electronics)
    Speed: 100cm/Second.

    Explorer Robot Usage Areas

    • Remote Controlled Projects
    • Military Transport Robots
    • Combat Robot Projects
    • Agricultural exploration.
    Suggested Parts
    • High Current 3S or 4S LiPo battery (Minimum 25C 2000 Mah)
    • Rc Remote System
    • Dual Motor Driver Capable of minimum 10 Ampere Each Channel

    All-terrain-robot-cad drawing



    A sleek and modern design with powerful motors that are fast (1000 RPM or 500 RPM) or high torque (200 Rpm) for any situation.
